470091CY Series

Catalog

MULTICONDUCTOR CABLE, PRO-MET®, CY CONTROL, SHIELDED, 9 CONDUCTOR, 17 AWG, 1 MM², 328 FT, 100 M

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Features	Length [x]	Length [x]	Jacket Color	Shield Coverage	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Material	Shield Type	Number of Conductors	Conductor Insulation	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Length	Spool Size	Spool Size

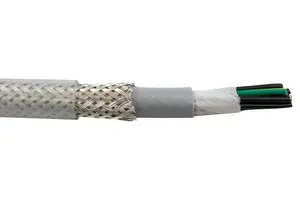

ALPHA WIRE 470091CY CL033	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	328.1 ft	100 m	Clear	80 %	Industrial	0.0079 "	30	17 AWG	Multi-Conductor	1.199 mm	0.0472 in	300 VDC	Copper Bare	Braid	9	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.506 in	12.85 mm
ALPHA WIRE 470091CY GE321	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant			Gray	80 %	Industrial	0.0079 "	30	17 AWG	Multi-Conductor	1.199 mm	0.0472 in	300 VDC	Copper Bare	Braid	9	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.506 in	12.85 mm	50 m	164 ft
ALPHA WIRE 470091CY CL432	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	98.43 ft	30 m	Clear	80 %	Industrial	0.0079 "	30	17 AWG	Multi-Conductor	1.199 mm	0.0472 in	300 VDC	Copper Bare	Braid	9	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.506 in	12.85 mm	10 m 20 m	32.81 ft 65.62 ft	Enter Number of Meters in Order Quantity	984.3 ft	300 m
ALPHA WIRE 470091CY GE033	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	328.1 ft	100 m	Gray	80 %	Industrial	0.0079 "	30	17 AWG	Multi-Conductor	1.199 mm	0.0472 in	300 VDC	Copper Bare	Braid	9	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.506 in	12.85 mm

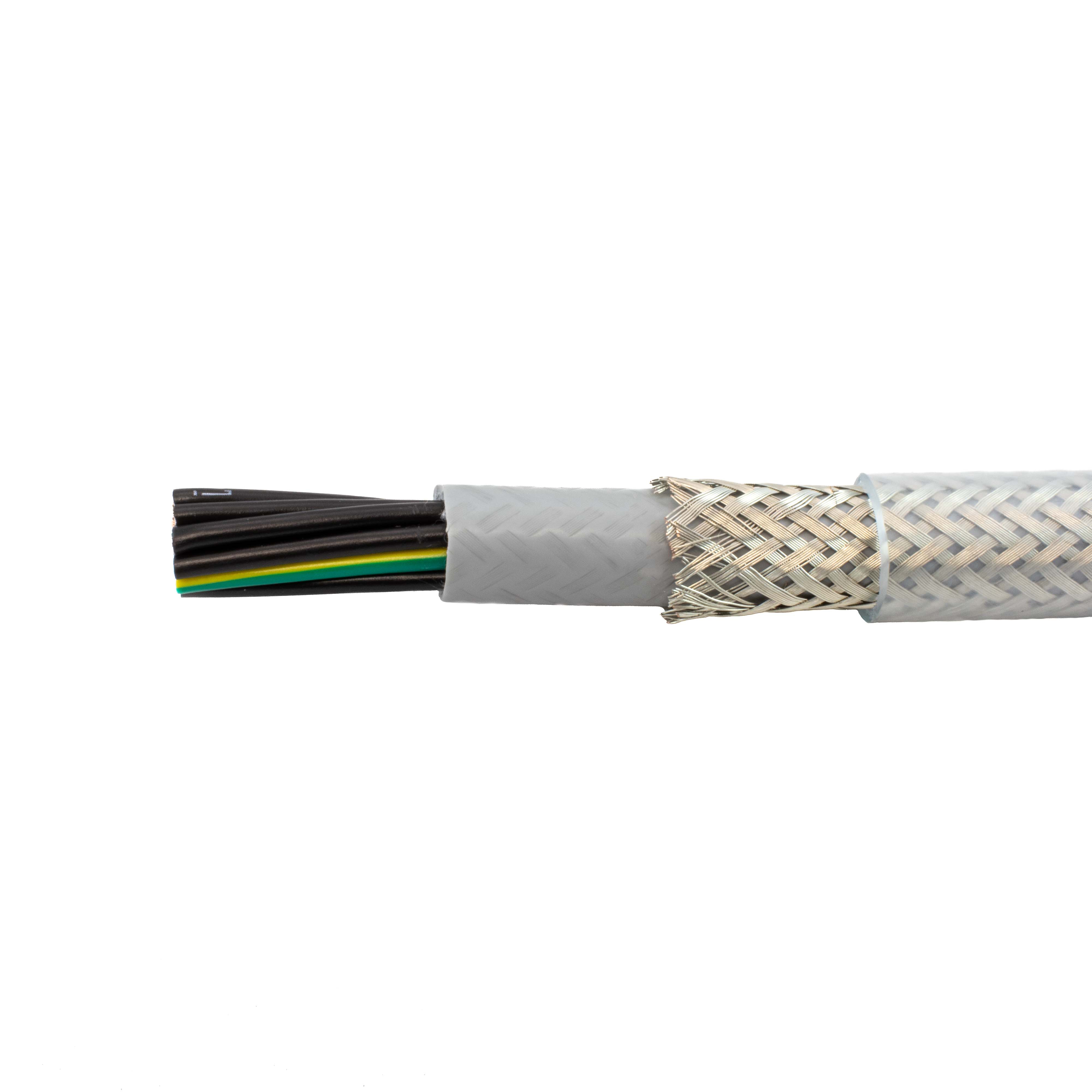

ALPHA WIRE 470091CY GE432	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	98.43 ft 984.3 ft	30 m 300 m	Gray	80 %	Industrial	0.0079 "	30	17 AWG	Multi-Conductor	1.199 mm	0.0472 in	300 VDC	Copper Bare	Braid	9	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.506 in	12.85 mm	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft	Enter Number of Meters in Order Quantity	984.3 ft	300 m
