A2HF1CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 50A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Contact Rating (Current) | Release Time | Coil Type | Features | Coil Voltage | Must Release Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Must Operate Voltage | Operate Time | Switching Voltage [Max] | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

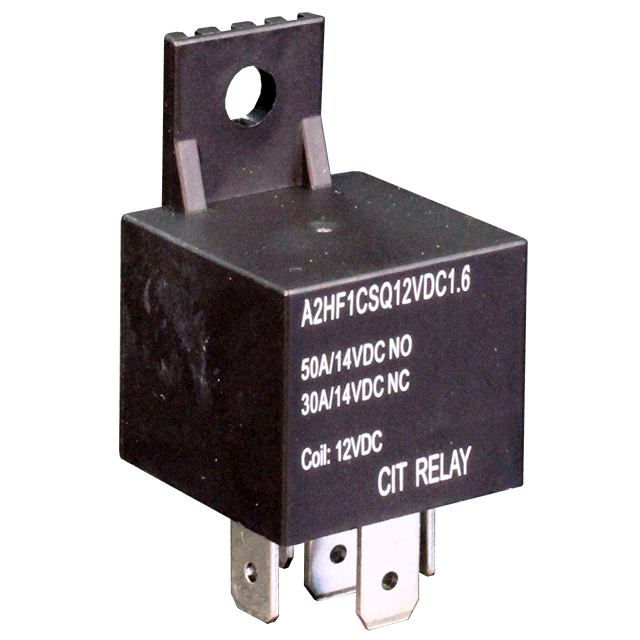

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 80 Ohms | 50 A | 10 ms | Non Latching | Resistor Sealed - Fully | 12 VDC | 1.2 VDC | SPDT (1 Form C) | 125 °C | -40 C | 0.15 A | 7.8 VDC | 10 ms | 75 VDC | Quick Connect - 0.250" (6.3mm) | Chassis Mount |

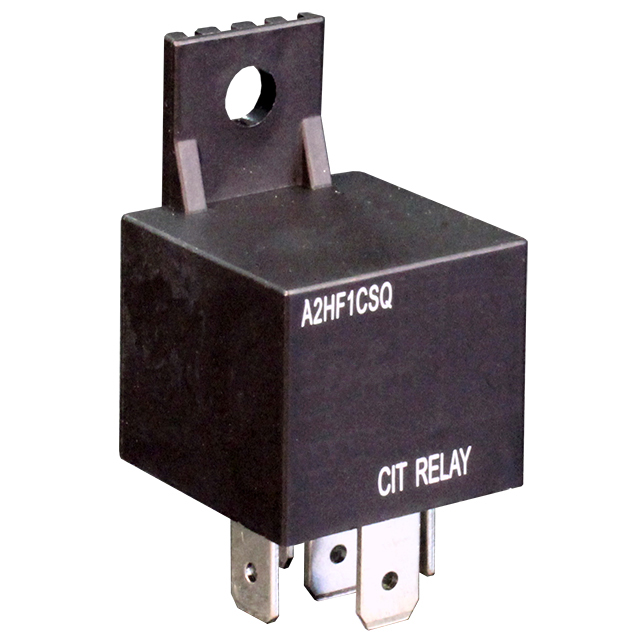

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | 50 A | 10 ms | Non Latching | Sealed - Fully | 24 VDC | 2.4 VDC | SPDT (1 Form C) | 125 °C | -40 C | 66.7 mA | 10 ms | 75 VDC | Quick Connect - 0.250" (6.3mm) | Chassis Mount | |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | 50 A | 10 ms | Non Latching | Sealed - Fully | 12 VDC | 1.2 VDC | SPDT (1 Form C) | 125 °C | -40 C | 133.3 mA | 7.8 VDC | 10 ms | 75 VDC | Quick Connect - 0.250" (6.3mm) | Chassis Mount |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 320 Ohms | 50 A | 10 ms | Non Latching | Resistor Sealed - Fully | 24 VDC | 2.4 VDC | SPDT (1 Form C) | 125 °C | -40 C | 0.075 A | 10 ms | 75 VDC | Quick Connect - 0.250" (6.3mm) | Chassis Mount |
