8609464781 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

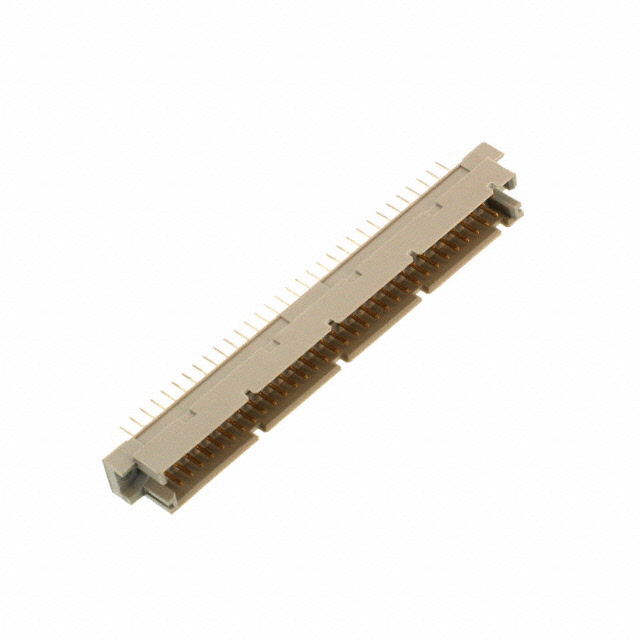

CONN DIN HDR 96POS PCB GOLD
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch [x] | Pitch [x] | Mounting Type | Material Flammability Rating | Contact Finish | Termination | Number of Positions | Level, Class | Number of Positions Loaded | Material - Insulation | Number of Rows | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 1 | 64 | Polyester Thermoplastic | 3 | |
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 64 | Polyester Thermoplastic | 3 | R | |
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 64 | Polyester Thermoplastic | 3 | R | |
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 64 | Polyester Thermoplastic | 3 | ||
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 1 | 64 | Polyester Thermoplastic | 3 | R |
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 64 | Polyester Thermoplastic | 3 | R | |
Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 1 | 64 | Polyester Thermoplastic | 3 | R |
 Amphenol ICC (FCI) | 1.5 A | -55 °C | 125 °C | Header Male Pins | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Gold | Solder | 96 | 64 | Polyester Thermoplastic | 3 | R |
