M2013BB Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Mounting Type	Voltage Rating - DC	Actuator Length [x]	Illumination	Features	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
NKK Switches M2013BB1W01	Brass Chrome Plated	25000 Steps	On-Off-On	12.5 mm	125 V	3 A 6 A	M12 x 1	Panel Mount	30 V	11.5 mm	Non-Illuminated	Epoxy Sealed Terminals	SPDT	Standard Round	85 °C	-30 ░C	Solder Lug

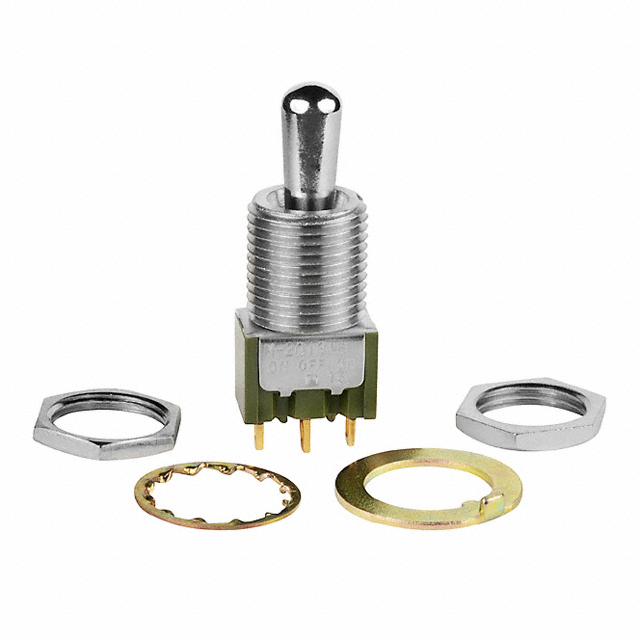

NKK Switches M2013BB1G01	Brass Chrome Plated	50000 Cycles	On-Off-On	12.5 mm	28 V	0.4 VA	M12 x 1	Panel Mount	28 V	11.5 mm	Non-Illuminated	Epoxy Sealed Terminals	SPDT	Standard Round	85 °C	-30 ░C	Solder Lug
NKK Switches M2013BB1W01-RA	Brass Chrome Plated	25000 Steps	On-Off-On	12.5 mm	125 V	3 A 6 A	M12 x 1	Panel Mount	30 V	12.3 mm	Non-Illuminated	Black Cap	SPDT	Standard Round with Cap	85 °C	-30 ░C	Solder Lug

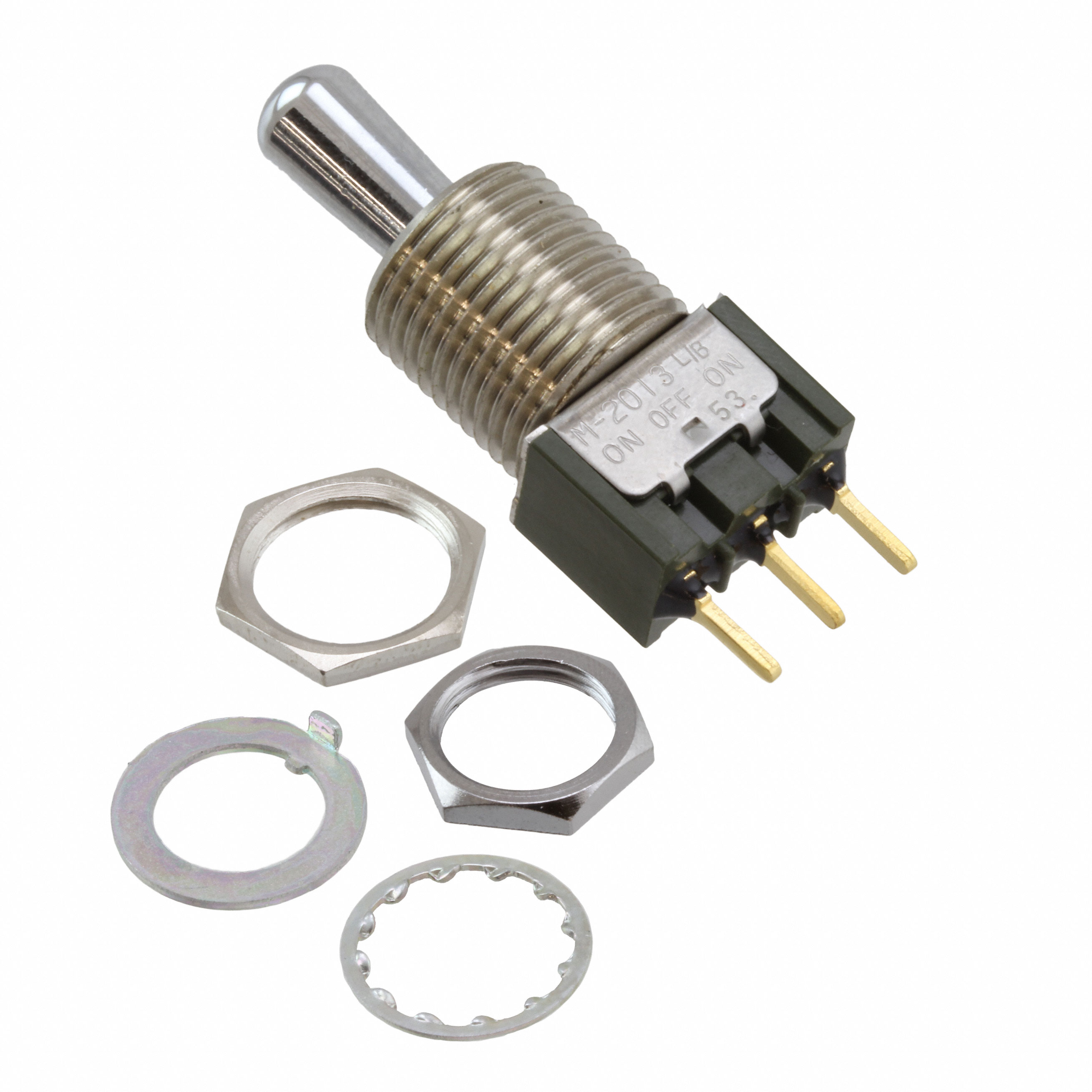

NKK Switches M2013BB1G03	Brass Chrome Plated	50000 Cycles	On-Off-On	12.5 mm	28 V	0.4 VA	M12 x 1	Panel Mount	28 V	11.5 mm	Non-Illuminated	Epoxy Sealed Terminals	SPDT	Standard Round	85 °C	-30 ░C	PC Pin
