GBC07D Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 14POS 2.54MM

Part	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Contact Finish - Mating	Contact Material	Contact Shape	Contact Finish - Post	Mounting Type	Number of Rows	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length

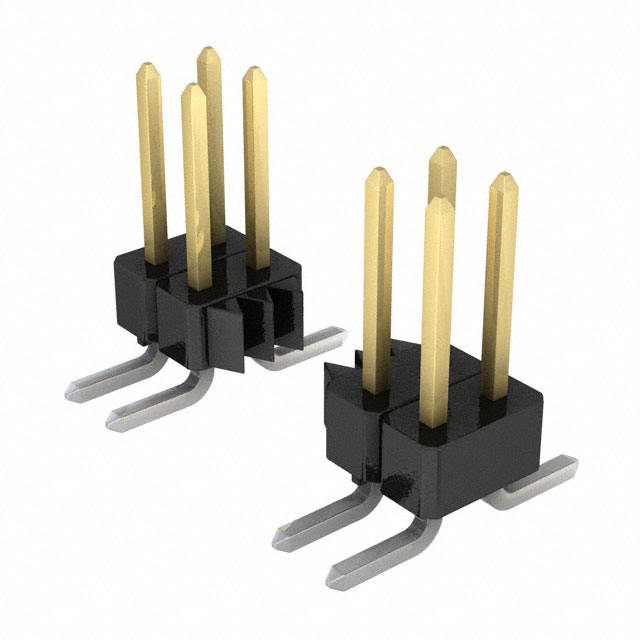

Sullins Connector Solutions GBC07DFBN-M30	Nylon 9T Polyamide (PA9T)	0.318 "	8.08 mm	Board to Board Cable	Gold	Phosphor Bronze	Square	Tin	Surface Mount	2	Push-Pull	UL94 V-0	All	Black	2.54 µm	100 µin	Male Pin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Unshrouded	10 çin	0.25 çm	Breakaway Header	Solder	-65 ░C	150 °C	14

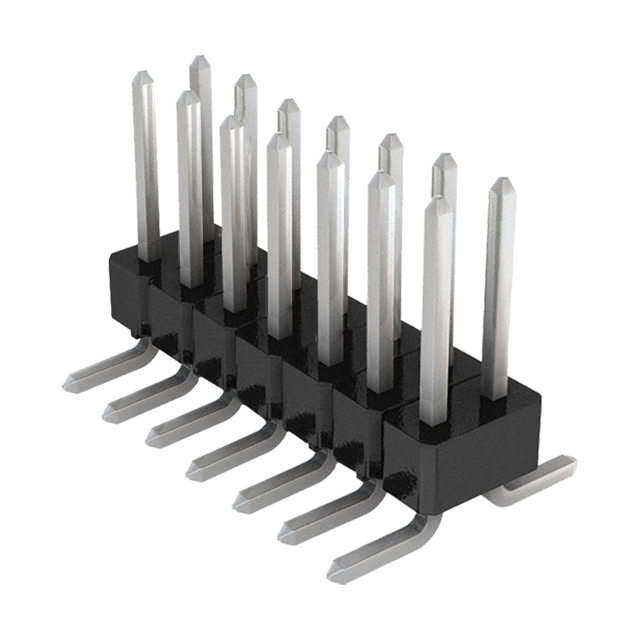

Sullins Connector Solutions GBC07DABN-M30	Nylon 9T Polyamide (PA9T)	0.23 in		Board to Board Cable	Gold	Phosphor Bronze	Square	Tin	Surface Mount	2	Push-Pull	UL94 V-0	All	Black	2.54 µm	100 µin	Male Pin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Unshrouded	10 çin	0.25 çm	Breakaway Header	Solder	-65 ░C	150 °C	14	5.84 mm

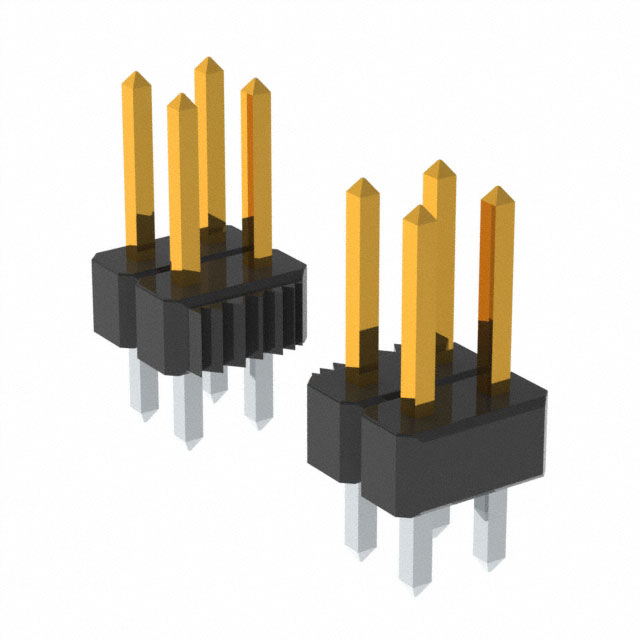

Sullins Connector Solutions GBC07DAAN	Nylon 9T Polyamide (PA9T)	0.23 in		Board to Board Cable	Gold	Phosphor Bronze	Square	Tin	Through Hole	2	Push-Pull	UL94 V-0	All	Black	2.54 µm	100 µin	Male Pin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Unshrouded	10 çin	0.25 çm	Breakaway Header	Solder	-65 ░C	150 °C	14	5.84 mm	0.12 in	3.05 mm	0.45 "	11.43 mm
