2385345 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

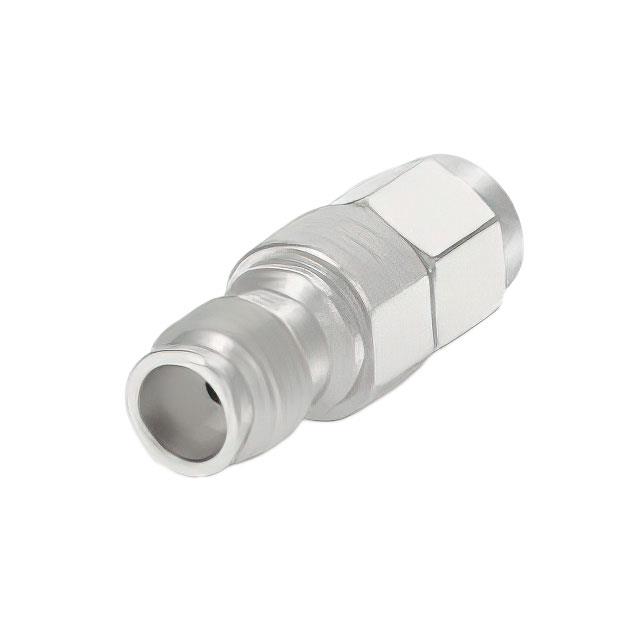

CIRCULAR CONNECTOR ADAPTER, 1 CONTACT(S), FEMALE-MALE
| Part | Convert To (Adapter End) | Body Material | Adapter Type | Impedance | Conversion Type | Center Contact Material | Center Contact Plating | Mating Cycles | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Style | Adapter Series [Min] | Adapter Series [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1.35mm Jack Female Socket | Stainless Steel | Plug to Jack | 50 Ohms | Between Series | Beryllium Copper | Gold | 500 | 1 mm | Plug Male Pin | Free Hanging (In-Line) | 90 GHz | -55 °C | 125 °C | Polyetheretherketone (PEEK) | Straight | 1 mm | 1.35 mm |
