R14200 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

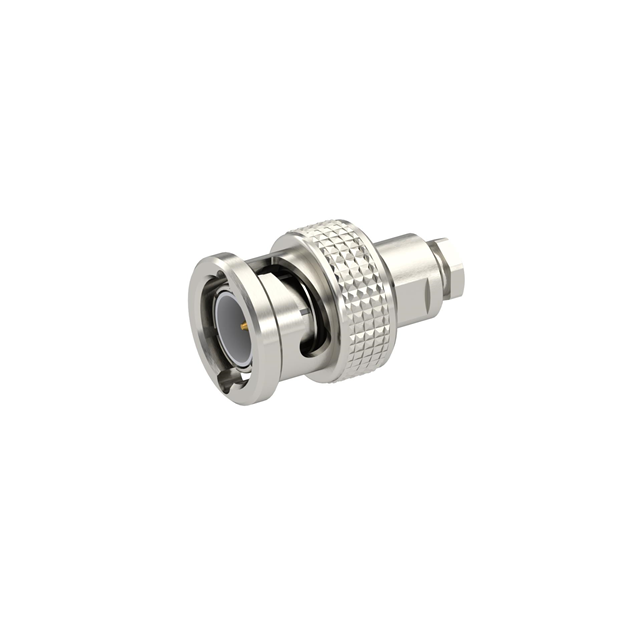

BNC / STRAIGHT PLUG CLAMP TYPE C
| Part | Body Material | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Dielectric Material | Mating Cycles | Voltage Rating | Center Contact Material | Shield Termination | Contact Termination | Connector Type | Housing Color | Impedance | Cable Group | Frequency - Max [Max] | Fastening Type | Number of Ports | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 0.2 dB | -65 ░C | 165 °C | Gold | Nickel | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Brass | Clamp | Solder | Plug Male Pin | Silver | 75 Ohms | 187 RG-179 | 1.5 GHz | Bayonet Lock | 1 | Free Hanging (In-Line) | BNC |
 Radiall USA, Inc. | Brass | 0.2 dB | -65 ░C | 165 °C | Gold | Nickel | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Brass | Clamp | Solder | Plug Male Pin | Silver | 75 Ohms | 187 RG-179 | 1.5 GHz | Bayonet Lock | 1 | Free Hanging (In-Line) | BNC |
