104091 Series
Manufacturer: Molex
Beta
⌘K

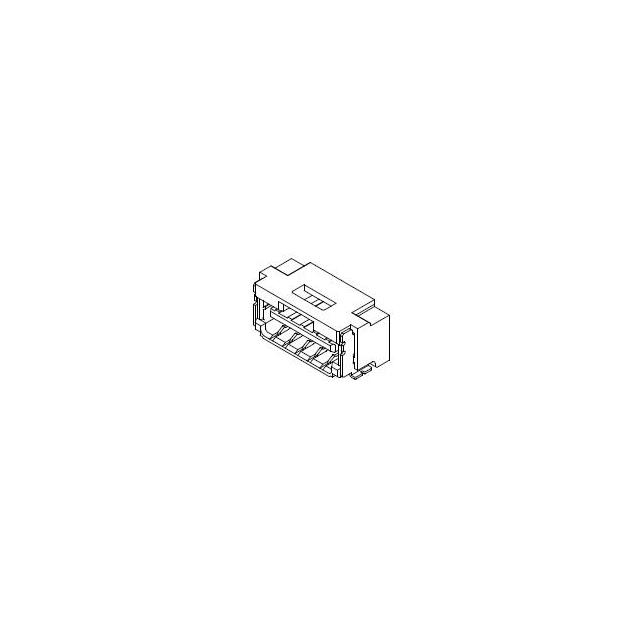

CONN HEADER SMD R/A 15POS 1.25MM
| Part | Connector Type | Fastening Type | Features | Insulation Height | Insulation Height | Termination | Style | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Contact Finish - Post | Mounting Type | Insulation Material | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Material | Applications | Contact Type | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Header | Latch Holder | Solder Retention | 4.05 mm | 0.159 in | Solder | Board to Cable/Wire | Natural | 3 µm | 118.1 µin | 1 | Tin | Surface Mount Right Angle | Liquid Crystal Polymer (LCP) Glass Filled Halogen Free | UL94 V-0 | 1.25 mm | 0.049 in | 15 | Phosphor Bronze | General Purpose Medical | Non-Gendered | Shrouded - 4 Wall | 118.1 µin | 3 µm | All |
 Molex | Header | Latch Holder | Solder Retention | 4.05 mm | 0.159 in | Solder | Board to Cable/Wire | Natural | 3 µm | 118.1 µin | 1 | Tin | Surface Mount Right Angle | Liquid Crystal Polymer (LCP) Glass Filled Halogen Free | UL94 V-0 | 1.25 mm | 0.049 in | Phosphor Bronze | General Purpose Medical | Non-Gendered | Shrouded - 4 Wall | 118.1 µin | 3 µm | All |
