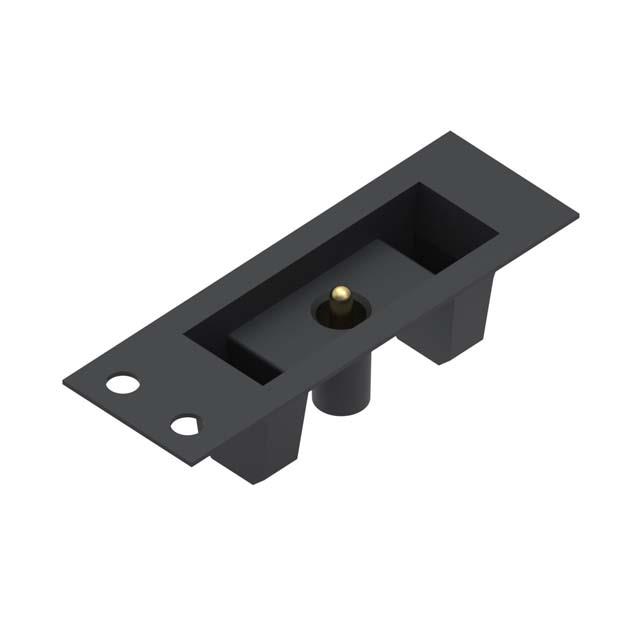

0910-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Type | Maximum Working Height [Max] | Maximum Working Height | Contact Finish | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height [z] | Minimum Working Height [z] | Mounting Type | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | Sleeve & Plunger (Pogo Pins) | 0.236 in | 6 mm | Gold | 25 gf | 0.042 in | 1.07 mm | 60 gf | 0.072 in | 1.83 mm | 0.181 in | 4.6 mm | Surface Mount | 5.29 mm | 0.208 in | 2 A | Copper Alloy | 20 µin | 0.51 µm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | Sleeve & Plunger (Pogo Pins) | 0.236 in | 6 mm | Gold | 10 gf | 0.042 in | 1.07 mm | 60 gf | 0.072 in | 1.83 mm | 0.181 in | 4.6 mm | Surface Mount | 5.29 mm | 0.208 in | 5.2 A | Brass Alloy | 20 µin | 0.51 µm |
