APG1005 Series

Catalog

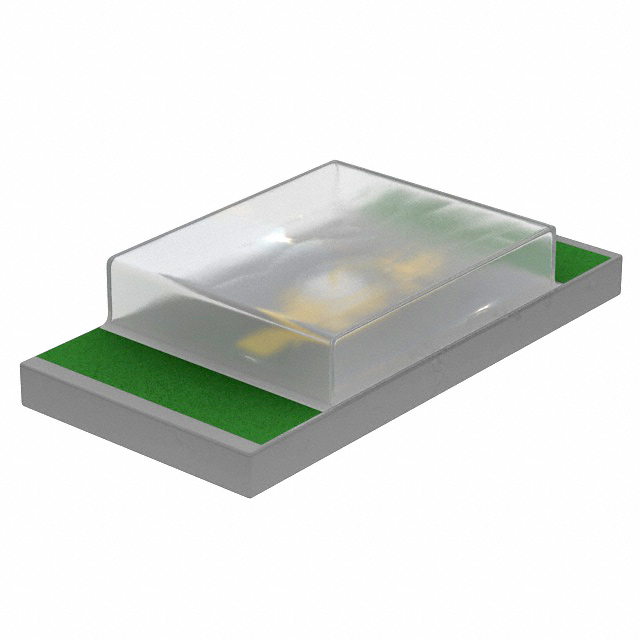

LED GREEN CLEAR CHIP SMD

Part	Millicandela Rating	Viewing Angle	Supplier Device Package	Lens Transparency	Wavelength - Dominant [custom]	Package / Case	Lens Size [y]	Lens Size [x]	Mounting Type	Configuration	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Wavelength - Peak	Color	Lens Color	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Dominant	Wavelength - Peak [custom]
Kingbright APG1005VGC-T-5MAV	70 mcd	145 °	Chip LED	Clear	527 nm	0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm	518 nm	Green	Colorless	5 mA	3 V	Rectangle with Flat Top
Kingbright APG1005PBC-T-5MAV	28 mcd	145 °	Chip LED	Clear		0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm	461 nm	Blue	Colorless	5 mA	2.9 V	Rectangle with Flat Top	467 nm
Kingbright APG1005SYC-T	100 mcd	120 °	Chip LED	Clear		0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm	591 nm	Yellow	Colorless	20 mA	2.05 V	Rectangle with Flat Top	589 nm
Kingbright APG1005CGC-T	35 mcd	120 °	Chip LED	Clear		0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm		Green	Colorless	20 mA	2 V	Rectangle with Flat Top	571 nm	572 nm
Kingbright APG1005RWF-T-5MAV	85 mcd	120 °	Chip LED			0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm		White	Yellow	5 mA	2.9 V	Rectangle with Flat Top
Kingbright APG1005SEC/E-T	75 mcd	120 °	Chip LED	Clear		0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm	632 nm	Red	Colorless	20 mA	2 V	Rectangle with Flat Top	624 nm
Kingbright APG1005SEC-T	90 mcd	120 °	Chip LED	Clear		0402 (1005 Metric)	0.5 mm	0.6 mm	Surface Mount	Standard	1 mm	0.5 mm	0.25 mm	611 nm		Colorless	20 mA	2.05 V	Rectangle with Flat Top	605 nm
