1546214 Series

Catalog

TERM BLOCK HDR 6POS VERT 5MM

Part	Contact Tail Length	Contact Tail Length	Contact Material	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Pitch	Pitch	Number of Levels	Header Orientation	Number of Positions	Mounting Type	Type	Color	Contact Mating Finish
TE Connectivity AMP Connectors 1546214-6	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	6	0.197 in	5 mm	1	Vertical	6	Through Hole	Header Male Pins Unshrouded	Gray	Tin

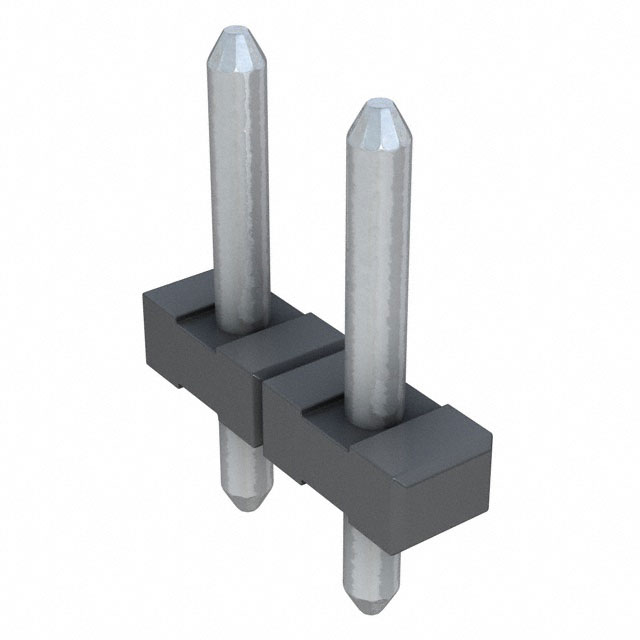

TE Connectivity AMP Connectors 1546214-2	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	2	0.197 in	5 mm	1	Vertical	2	Through Hole	Header Male Pins Unshrouded	Gray	Tin
TE Connectivity AMP Connectors 1546214-8	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	8	0.197 in	5 mm	1	Vertical	8	Through Hole	Header Male Pins Unshrouded	Gray	Tin
TE Connectivity AMP Connectors 1-1546214-8	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	18	0.197 in	5 mm	1	Vertical	18	Through Hole	Header Male Pins Unshrouded	Gray	Tin
TE Connectivity AMP Connectors 1546214-5	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	5	0.197 in	5 mm	1	Vertical	5	Through Hole	Header Male Pins Unshrouded	Gray	Tin

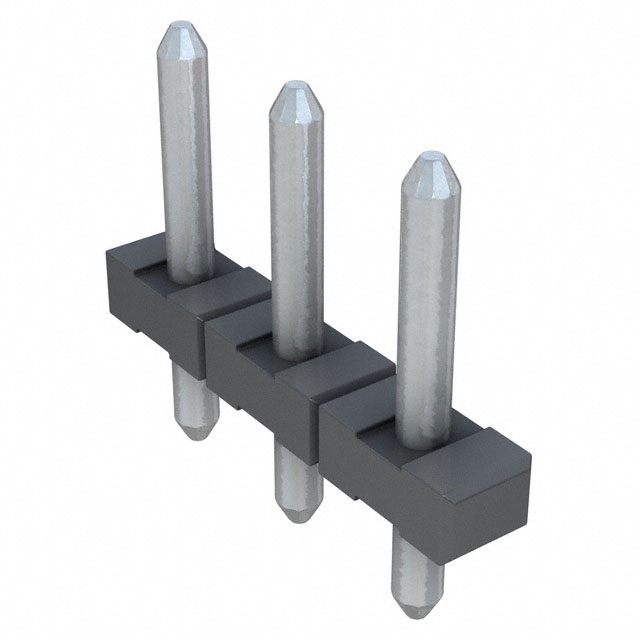

TE Connectivity AMP Connectors 1546214-3	0.138 in	3.5 mm	Copper Alloy	2 mm	0.079 in	UL94 V-0	Solder	-40 C	110 °C	3	0.197 in	5 mm	1	Vertical		Through Hole	Header Male Pins Unshrouded	Gray	Tin
