19412100 Series
Manufacturer: HARTING
Beta
⌘K
HAN-ECO MODULAR 10B COUPLER HOOD M32 W/O GLAND - OUTDOOR
| Part | Style | Lock Location | Ingress Protection | Housing Color | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Size | Features | Connector Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

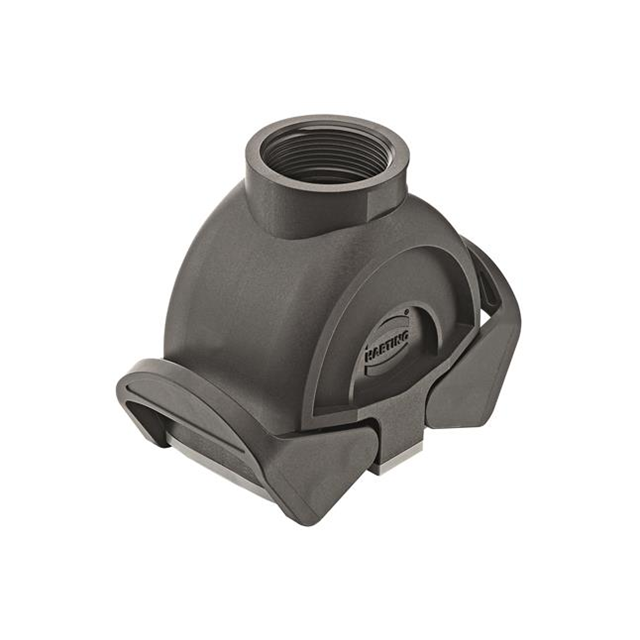

 HARTING | Bottom Entry Top or Bottom Entry | Locking Clip (2) on Hood Top | IP65 - Dust Tight Water Resistant | Black | M32 | 125 °C | -40 C | Glass Filled Nylon Polyamide (PA) | 10B | Cable to Cable | Hood - Coupling | ||||||

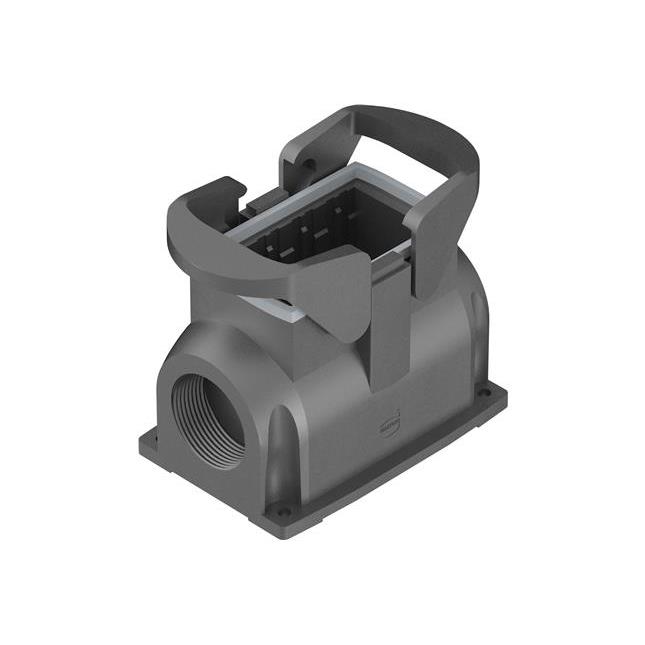

 HARTING | Side Entry | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | M32 | 125 °C | -40 C | Glass Filled Nylon Polyamide (PA) | 10B | Base - Box Mount | 2.843 in | 72.2 mm | 99 mm | 68 mm | 3.898 in | 2.677 " | |

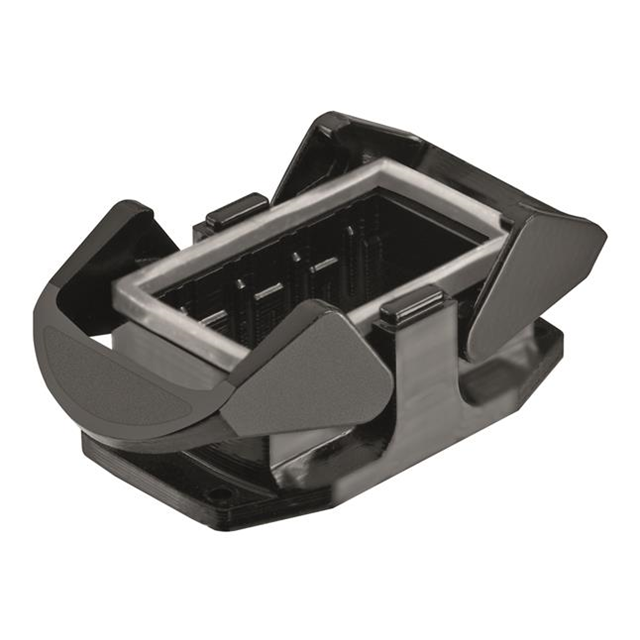

 HARTING | Bottom Entry | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | 125 °C | -40 C | Glass Filled Nylon Polyamide (PA) | 10B | Base - Panel Mount |
