H2032 Series
Manufacturer: Harwin Inc.
Beta
⌘K

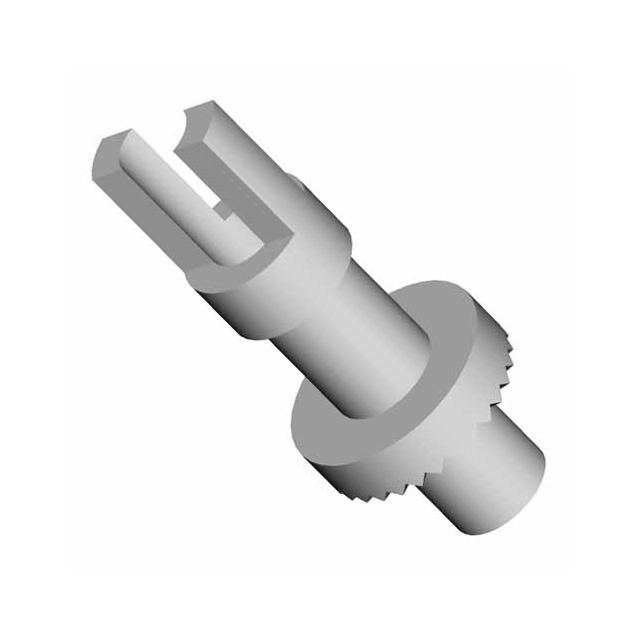

TERM TURRET HOLLOW L=9.53MM TIN
| Part | Insulation | Contact Material | Staking Side OD [Max] [diameter] | Staking Side OD [Min] [diameter] | Staking Side OD [Max] [diameter] | Staking Side OD [Min] [diameter] | Length - Above Board [x] | Length - Above Board [x] | Terminal Type | Length - Overall | Length - Overall | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Number of Turrets | Contact Finish | Termination | Diameter - Turret Head [Min] [diameter] | Diameter - Turret Head [Min] [diameter] | Diameter - Turret Head [Max] [diameter] | Diameter - Turret Head [Max] [diameter] | Mounting Type | Staking Side ID [Max] | Staking Side ID [Min] | Staking Side ID [Max] | Staking Side ID [Min] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Non-Insulated | Brass Alloy | 2.39 mm | 2.31 mm | 0.094 in | 0.091 in | 9.53 mm | 0.375 in | Fork Hollow Single End | 11.9 mm | 0.469 " | 0.094 " | 2.39 mm | 2.46 mm | 0.097 " | Single | Tin | Swage | 0.12 in | 3.05 mm | 3.18 mm | 0.125 in | Through Hole | 0.07 in | 0.067 in | 1.78 mm | 1.7 mm | 0.187 in | 4.75 mm | 2.51 mm | 2.39 mm | 0.094 " | 0.099 " | 0.063 in | 1.6 mm |
