LOD-H01602 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

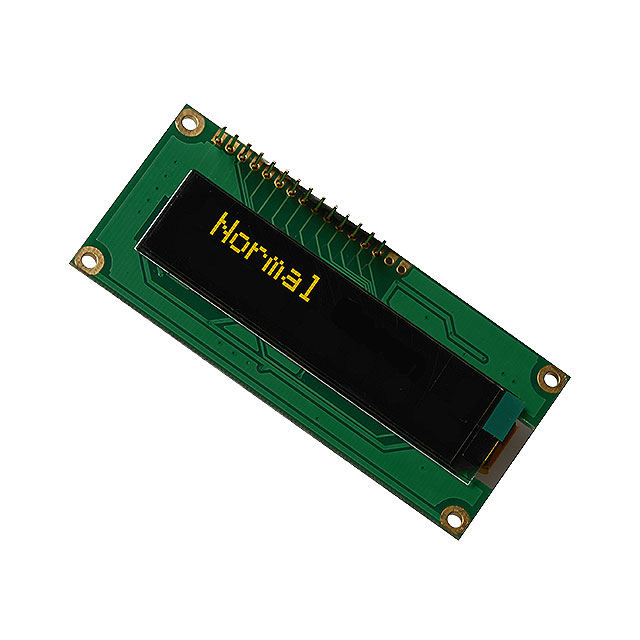

OLED MODULE 32DIG 16 X 2 PASSIVE
| Part | Display Type | Outline L x W x H [x] | Outline L x W x H [y] | Outline L x W x H [z] | Display Mode | Dot Size [x] | Dot Size [y] | Operating Temperature [Max] | Operating Temperature [Min] | Character Size [y] | Character Size [z] | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Text Color | Viewing Area [y] | Viewing Area [x] | Display Format [x] | Display Format [y] | Background Color | Character Format [x] | Character Format [y] | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | OLED | 80 mm | 36 mm | 3.8 mm | Passive | 0.57 mm | 0.67 mm | 80 °C | -40 C | 2.97 mm | 5.57 mm | 5.5 V | 2.4 V | 8-Bit Parallel | Yellow | 13.52 mm | 58.22 mm | 16 | 2 | Black | 5 | 7 | 32 |
