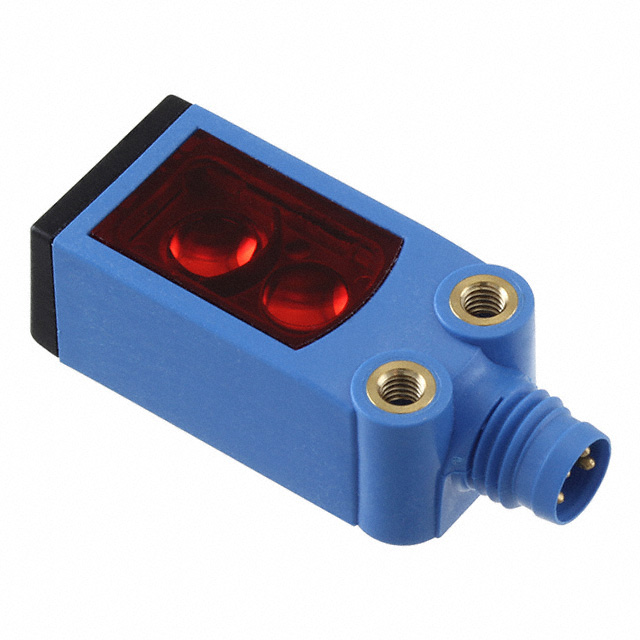

WTB4 Series

Catalog

SENSOR PROXIMITY 150MM NPN

Part	Adjustment Type	Response Time	Light Source	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Sensing Method	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Distance	Sensing Distance
SICK, Inc. 1028125	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)	78.74 "	2 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable	-40 °C	60 °C	NPN
SICK, Inc. 1028104	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)			0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP66 IP67	Proximity	Connector M8	-40 °C	60 °C	NPN
SICK, Inc. 1028123	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)			0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP66 IP67	Proximity	Connector M8	-40 °C	60 °C	PNP
SICK, Inc. 1028121	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)	78.74 "	2 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable	-40 °C	60 °C	PNP
SICK, Inc. 1028106	Adjustable Potentiometer	200 µs	RED (650nm)	3.937 in	0.1 m					10 VDC	30 VDC	IP67 IP69K	Proximity	Cable with Connector	-10 °C	50 °C	NPN - Dark-ON/Light-ON	10 mm	0.394 in
SICK, Inc. WTB4-3P1361	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)	78.74 "	2 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable	-40 °C	60 °C	PNP
SICK, Inc. WTB4-3P1362	Adjustable	500 µs	RED (650nm)	78.74 "	2 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable	-40 °C	60 °C	PNP
SICK, Inc. 1028101	5-Turn Potentiometer Adjustable	500 µs	RED (650nm)	78.74 "	2 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable	-40 °C	60 °C	NPN
SICK, Inc. 1028085	Adjustable	500 µs	RED (650nm)			0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Connector M8	-40 °C	60 °C	PNP
SICK, Inc. 1028089	Adjustable	500 µs	RED (650nm)	3.937 in	0.1 m	0.157 "	5.906 in	4 mm	15 cm	10 VDC	30 VDC	IP67	Proximity	Cable with Connector	-40 °C	60 °C	NPN
