120954 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

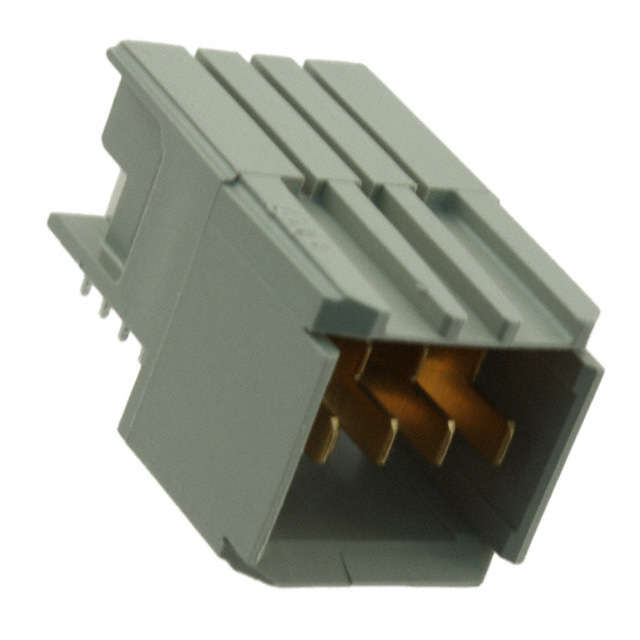

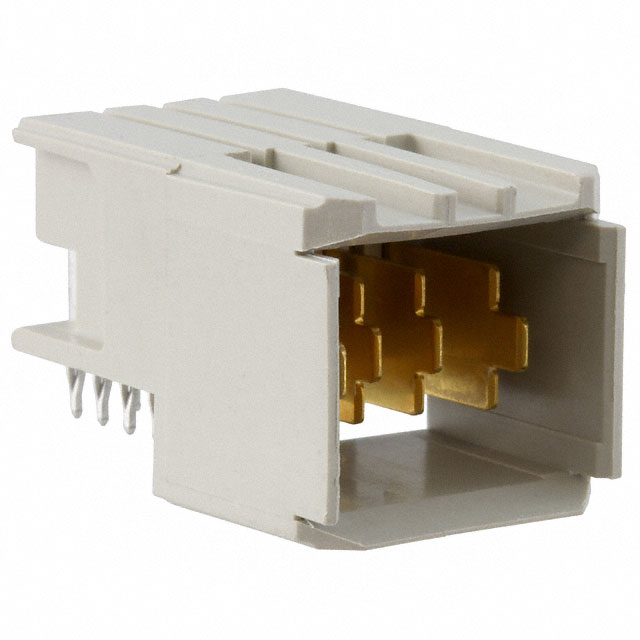

CONN HEADER BLADE PWR 4P EDGE MT
| Part | Material Flammability Rating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions Loaded | Contact Finish | Number of Rows | Contact Layout, Typical | Features | Color | Connector Type | Connector Style | Mounting Type | Connector Usage | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 250 V | -55 C | 125 °C | Press-Fit | All | Gold Gold-Palladium | 1 | 4 Power | Board Guide | Gray | Header Male Blades | Blade Power | Board Edge Right Angle Through Hole | Backplane | 4 |
 TE Connectivity AMP Connectors | UL94 V-0 | 250 V | -55 C | 125 °C | Press-Fit | All | Gold Gold-Palladium | 1 | 4 Power | Board Guide | Gray | Header Male Blades | Blade Power | Board Edge Right Angle Through Hole | Backplane | 4 |
 TE Connectivity AMP Connectors | UL94 V-0 | 250 V | -55 C | 125 °C | Press-Fit | All | Gold Gold-Palladium | 1 | 4 Power | Board Guide | Gray | Header Male Blades | Blade Power | Board Edge Right Angle Through Hole | Backplane | 4 |
 TE Connectivity AMP Connectors | UL94 V-0 | 250 V | -55 C | 125 °C | Press-Fit | All | Gold Gold-Palladium | 1 | 4 Power | Board Guide | Gray | Header Male Blades | Blade Power | Board Edge Right Angle Through Hole | Backplane | 4 |
TE Connectivity AMP Connectors | UL94 V-0 | 250 V | -55 C | 125 °C | Press-Fit | All | Gold Gold-Palladium | 1 | 4 Power | Board Guide | Gray | Header Male Blades | Blade Power | Board Edge Right Angle Through Hole | Backplane | 4 |
