2355443 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
IN-LINE ADAPTER, CAT5E, RJ45, RJ45, ADAPTER, IN-LINE, JACK, 8 POSITIONS
| Part | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Contact Material | Convert From (Adapter End) | Ratings | Features | Mounting Type | Type | Contact Finish | Shielding | Housing Material | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

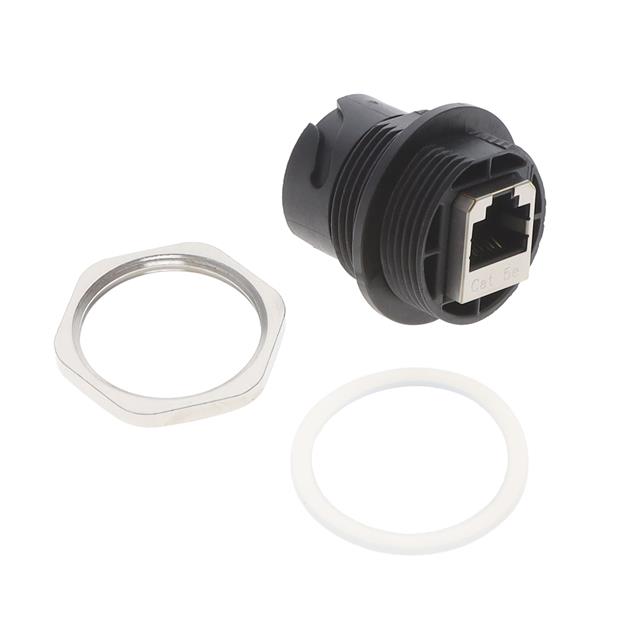

 TE Connectivity Raychem Cable Protection | 50 µin | 1.27 µm | Copper Alloy Nickel Plated | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | Front Side Nut | Phosphor Bronze | Jack 8p8c (RJ45) | Cat5e | Circular Bayonet Coupling | Bulkhead Panel Mount | Coupler | Gold | Shielded | Polybutylene Terephthalate (PBT) | 8p8c (RJ45) Jack |

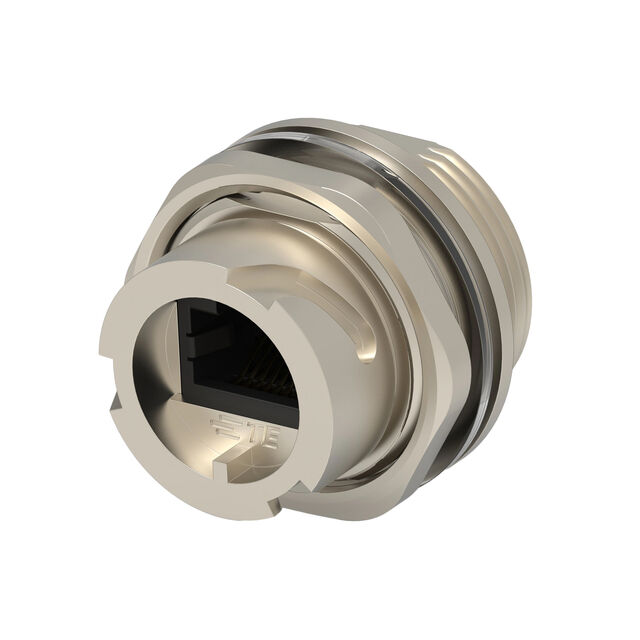

 TE Connectivity Raychem Cable Protection | 50 µin | 1.27 µm | Copper Alloy Nickel Plated | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | Front Side Nut | Phosphor Bronze | Jack 8p8c (RJ45) | Cat5e | Circular Bayonet Coupling | Bulkhead Panel Mount | Coupler | Gold | Shielded | Zinc Die Cast | 8p8c (RJ45) Jack |
