085513 Series

Manufacturer: Molex

Catalog

CONN MOD JACK 6P4C VERT UNSHLD

Part	Mounting Type	Features	Tab Direction	Number of Positions/Contacts	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	LED Color	Housing Material	Number of Rows	Contact Finish	Shielding	Ratings	Number of Ports	Connector Type	Termination	Contact Finish Thickness

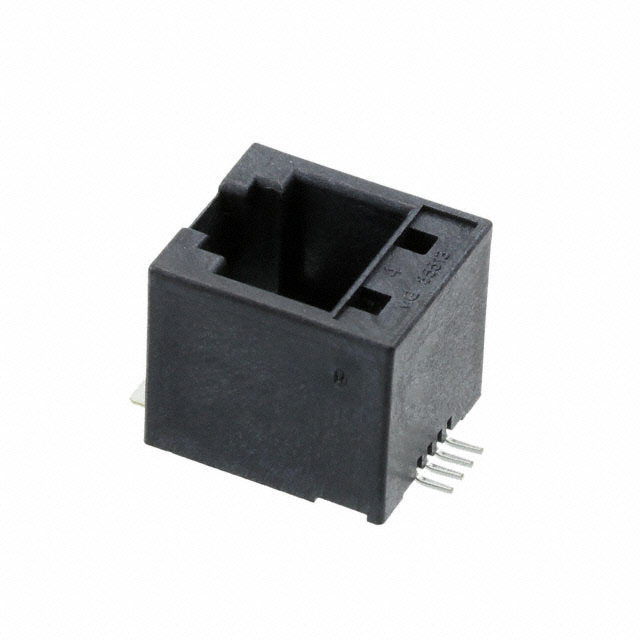

Molex 0855135115	Surface Mount	Pick and Place Cap Solder Retention	User Selectable	6p4c	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder
Molex 0855135003	Surface Mount	Solder Retention	User Selectable	6p4c	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder	Flash
Molex 0855135113	Surface Mount	Pick and Place Cap Solder Retention	User Selectable	8p8c (RJ45 Ethernet)	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder
Molex 0855130015

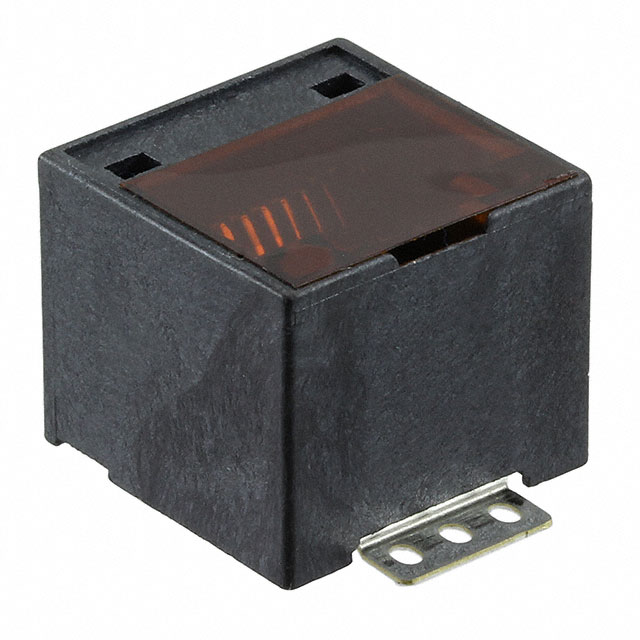

Molex 0855135101	Surface Mount	Pick and Place Cap Solder Retention	User Selectable	8p8c (RJ45 Ethernet)	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder

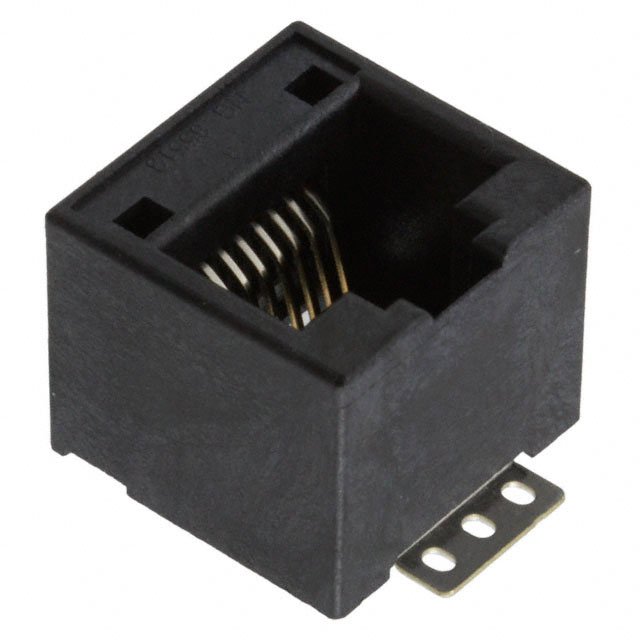

Molex 0855135001	Surface Mount	Solder Retention	User Selectable	8p8c (RJ45 Ethernet)	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder	Flash

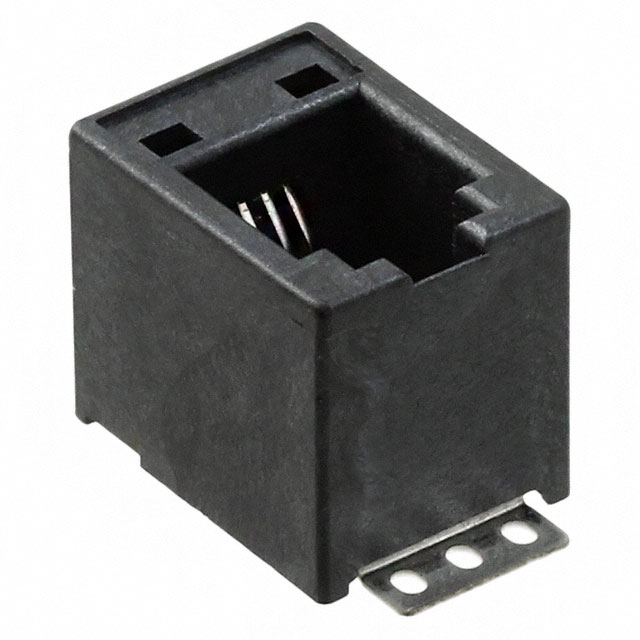

Molex 0855135116	Surface Mount	Pick and Place Cap Solder Retention	User Selectable	4p4c	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder
Molex 0855135013	Surface Mount	Solder Retention	User Selectable	8p8c (RJ45 Ethernet)	Copper Alloy	85 °C	-40 °C	Vertical	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	1	Gold	Unshielded	Cat3	1	Jack	Solder	Flash
