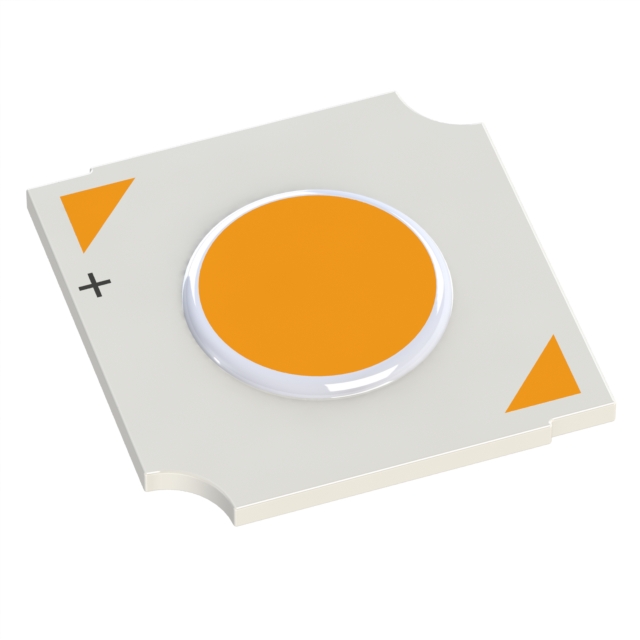

CXM-6 Gen 3 Series

Catalog

WHITE LEDS WHITE 6500 K 70-CRI, CXM-6 SERIES

Part	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Viewing Angle	CCT (K)	CRI (Color Rendering Index)	Type	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Color	Configuration	Lens Type	CCT (K)
Luminus Devices Inc. CXM-6-65-70-36-AC30-F4-5	150 mA	148 lm/W	34.6 V	355 mA	85 °C	13.5 mm	13.5 mm	1.37 mm	120 °	6500 K	70	Chip On Board (COB)	768 lm	6.3 mm	Cool White	Square	Flat
Luminus Devices Inc. CXM-6-30-80-18-AC30-F4-3	150 mA 300 mA	135 lm/W 270 lm/W	17.3 V	650 mA	85 °C	13.5 mm	13.5 mm	1.37 mm	120 °	3000 K	80	Chip On Board (COB)	700 lm	6.3 mm	Warm White	Square	Flat	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-6-40-80-18-AA30-F4-3	300 mA	136 lm/W	17.3 V	710 mA	85 °C	13 mm	12 mm	1.37 mm	120 °	4000 K	80	Chip On Board (COB)	705 lm	6.3 mm	Neutral White	Rectangle	Flat	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-6-65-70-18-AC30-F4-5	300 mA	153 lm/W	17.3 V	650 mA	85 °C	13.5 mm	13.5 mm	1.37 mm	120 °	6500 K	70	Chip On Board (COB)	795 lm	6.3 mm	Cool White	Square	Flat
Luminus Devices Inc. CXM-6-27-95-36-AC30-F4-3	150 mA	97 lm/W	34.6 V	355 mA	85 °C	13.5 mm	13.5 mm	1.37 mm	120 °	2700 K	95	Chip On Board (COB)		6.3 mm	Warm White	Square	Flat	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-6-65-80-36-AC30-F4-5	150 mA	148 lm/W	34.6 V	355 mA	85 °C	13.5 mm	13.5 mm	1.37 mm	120 °	6500 K	80	Chip On Board (COB)	768 lm	6.3 mm	Cool White	Square	Flat
