EEH-AZF Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYBRID 100UF 20% 35V TH

Part	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Package / Case	Tolerance	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Capacitance	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ratings	Applications	Operating Temperature [Min]	Operating Temperature [Max]
Panasonic Industrial Automation Sales EEH-AZF1V101B	3.5 mm	0.138 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	770 mA	Through Hole	1000 Hrs	100 µF	30 mOhms	115.5 mA	0.315 "	8 mm	35 V	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1E271B	5 mm	0.197 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	1 A	Through Hole	1000 Hrs	270 µF	20 mOhms	150 mA	0.394 in	10 mm	25 VDC	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1J330B	3.5 mm	0.138 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	650 mA	Through Hole	1000 Hrs	33 ÁF	40 mOhm	65 mA	0.315 "	8 mm	63 V	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1V151B	5 mm	0.197 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	950 mA	Through Hole	1000 Hrs	150 µF	23 mOhm	142.5 mA	0.394 in	10 mm	35 V	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1E151B	3.5 mm	0.138 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	800 mA	Through Hole	1000 Hrs	150 µF	27 mOhms	120 mA	0.315 "	8 mm	25 VDC	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1H101B	5 mm	0.197 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	900 mA	Through Hole	1000 Hrs	100 µF	28 mOhm	135 mA	0.394 in	10 mm	50 VDC	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1H560B	3.5 mm	0.138 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	700 mA	Through Hole	1000 Hrs	56 µF	35 mOhms	105 mA	0.315 "	8 mm	50 VDC	AEC-Q200	Automotive	-55 °C	150 °C

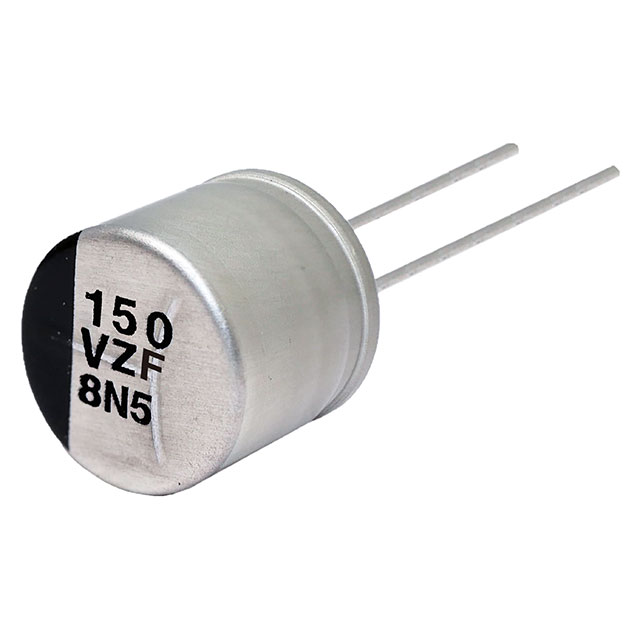

Panasonic Industrial Automation Sales EEH-AZF1J560	5 mm	0.197 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	840 mA	Through Hole	1000 Hrs	56 µF	30 mOhms	126 mA	0.394 in	10 mm	63 V	AEC-Q200	Automotive	-55 °C	150 °C
Panasonic Industrial Automation Sales EEH-AZF1J330	3.5 mm	0.138 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	650 mA	Through Hole	1000 Hrs	33 ÁF	40 mOhm	65 mA	0.315 "	8 mm	63 V	AEC-Q200	Automotive	-55 °C	150 °C

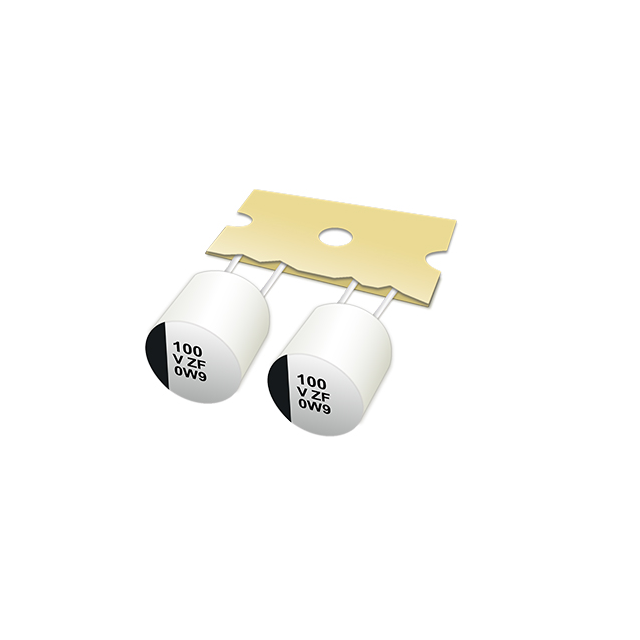

Panasonic Industrial Automation Sales EEH-AZF1J560B	5 mm	0.197 in	0.413 in	10.5 mm	Hybrid	Radial Can	20 %	840 mA	Through Hole	1000 Hrs	56 µF	30 mOhms	126 mA	0.394 in	10 mm	63 V	AEC-Q200	Automotive	-55 °C	150 °C
