1337588 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

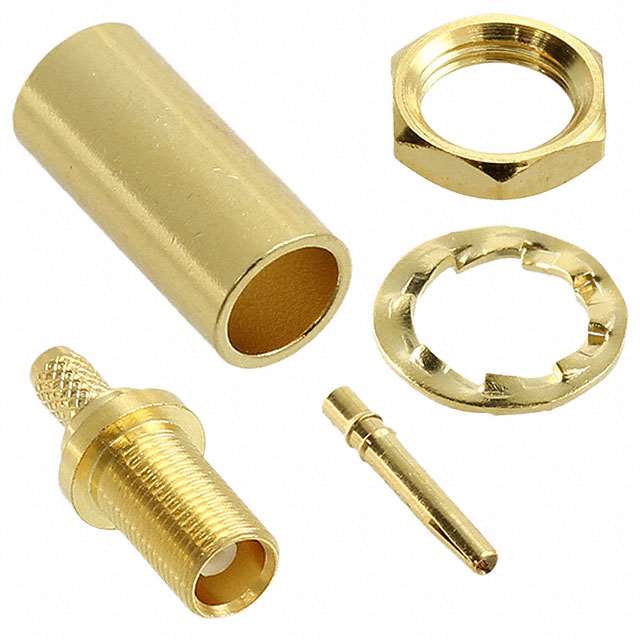

CONN MCX JACK STR 50 OHM CRIMP
| Part | Includes | Dielectric Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Material | Insertion Loss | Voltage Rating | Mating Cycles | Cable Group | Mounting Feature | Housing Color | Number of Ports | Center Contact Material | Fastening Type | Connector Style | Mounting Type | Frequency - Max [Max] | Contact Termination | Impedance | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | Gold | Brass | 0.1 dB | 335 V | 500 | 188A 316 RG-174A | Bulkhead - Front Side Nut | Gold | 1 | Beryllium Copper | Snap-On | MCX | Panel Mount | 6000 MHz | Crimp | 50 Ohms | Female Socket Jack | Crimp |
