PK10 Series
Manufacturer: Panduit Corp
Beta
⌘K

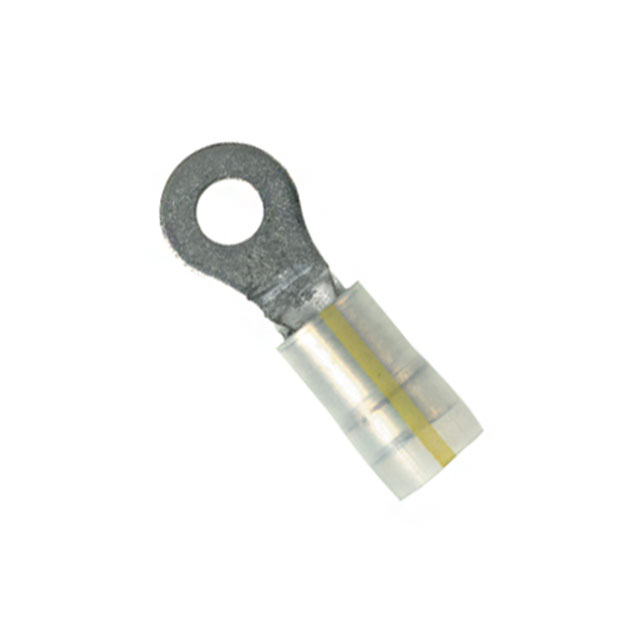

RING TONGUE TERMINAL, M6, 1/4", 10 AWG, 6 MM², PK SERIES, NATURAL
| Part | Material - Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Features | Mounting Type | Width - Outer Edges | Width - Outer Edges | Terminal Type | Thickness | Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish | Insulation | Stud/Tab Size | Color | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Polyvinylidene Fluoride (PVDF) | 5.72 mm | 0.225 " | Serrated Termination | Free Hanging (In-Line) | 0.52 in | 13.21 mm | Circular | 0.04 in | 1.02 mm | 10 AWG | 12 AWG | 31.75 mm | 1.25 " | Brass | Tin | Insulated | 0.25 Stud | Natural Yellow Stripe | Crimp | ||||
Panduit Corp | Polyvinylidene Fluoride (PVDF) | 5.72 mm | 0.225 " | Serrated Termination | Free Hanging (In-Line) | Circular | 0.04 in | 1.02 mm | 10 AWG | 12 AWG | Brass | Tin | Insulated | 10 Stud | Natural Yellow Stripe | Crimp | 0.37 in | 9.4 mm | 1.06 in | 26.92 mm |
