29611 Series
Manufacturer: Phoenix Contact
Beta
⌘K

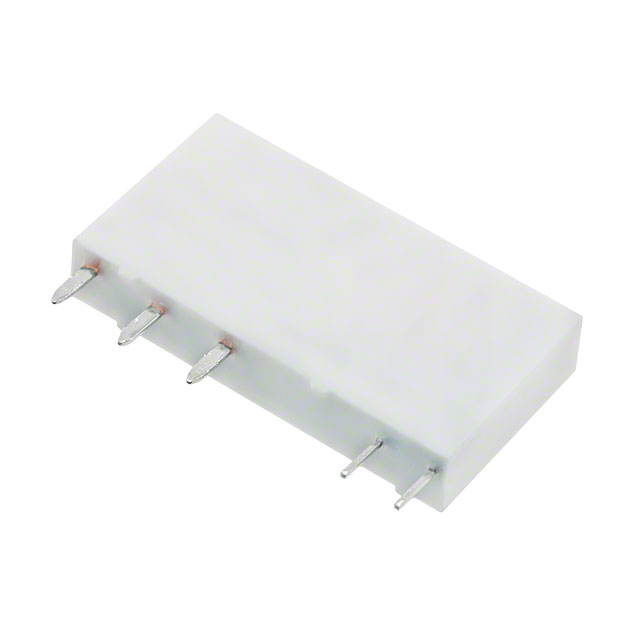

POWER RELAY, SPDT, 24 VDC, 50 MA, REL-MR SERIES, THROUGH HOLE, NON LATCHING
| Part | Coil Resistance | Relay Type | Contact Form | Operate Time | Release Time | Coil Current | Mounting Type | Coil Type | Contact Material | Termination Style | Approval Agency | Switching Voltage [Max] | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Load - Max Switching | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 3.39 kOhms | General Purpose | SPDT (1 Form C) | 5 ms | 2.5 ms | 7 mA | Through Hole | Non Latching | Gold (Au) Silver Tin Oxide (AgSnO) | PC Pin | cULus EAC UR | 250 VAC | 6 A | 85 °C | -40 C | 24 VDC | 1500 VA | |
 Phoenix Contact | 848 Ohms | General Purpose | SPDT (1 Form C) | 5 ms | 2.5 ms | 14 mA | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | PC Pin | cULus EAC UR | 6 A | 85 °C | -40 C | 12 VDC | 250 VAC 250 VDC | ||
 Phoenix Contact | 848 Ohms | General Purpose | SPDT (1 Form C) | 5 ms | 2.5 ms | 14 mA | Through Hole | Non Latching | Gold (Au) Silver Tin Oxide (AgSnO) | PC Pin | cULus EAC UR | 6 A | 85 °C | -40 C | 12 VDC | 250 VAC 250 VDC |
