503425 Series

Manufacturer: Molex

Catalog

CONN FPC 61POS 0.3MM R/A

Part	Actuator Color	Housing Color	Current Rating (Amps)	Mating Cycles	Pitch	Pitch	Termination	Cable End Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Actuator Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Housing Material	Flat Flex Type	Locking Feature	Features	Mounting Type	FFC, FCB Thickness [custom]	Material Flammability Rating	Connector/Contact Type

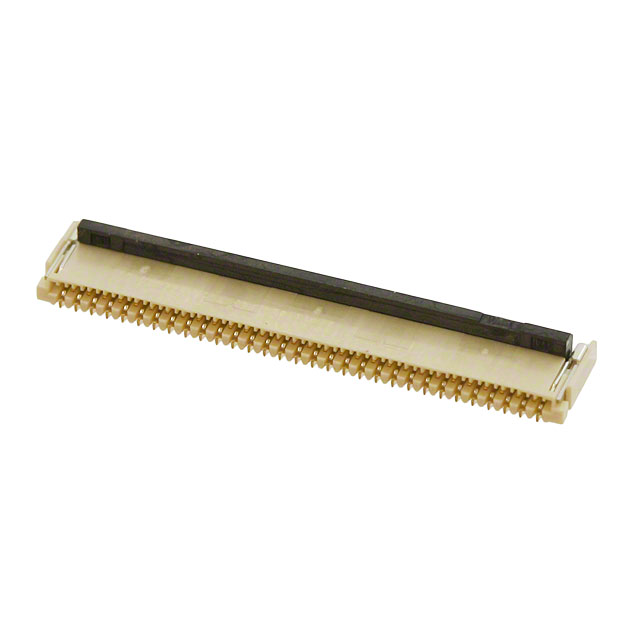

Molex 5034256191	Black	White	0.2 A	10	0.012 in	0.3 mm	Solder	Notched	1.2 mm	0.047 "	Gold	61	Polyphenylene Sulfide (PPS) Glass Filled	50 V	85 °C	-40 C	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	FPC	Backlock Flip Lock	Solder Retention	Right Angle Surface Mount	0.2 mm	UL94 V-0	Contacts Top and Bottom

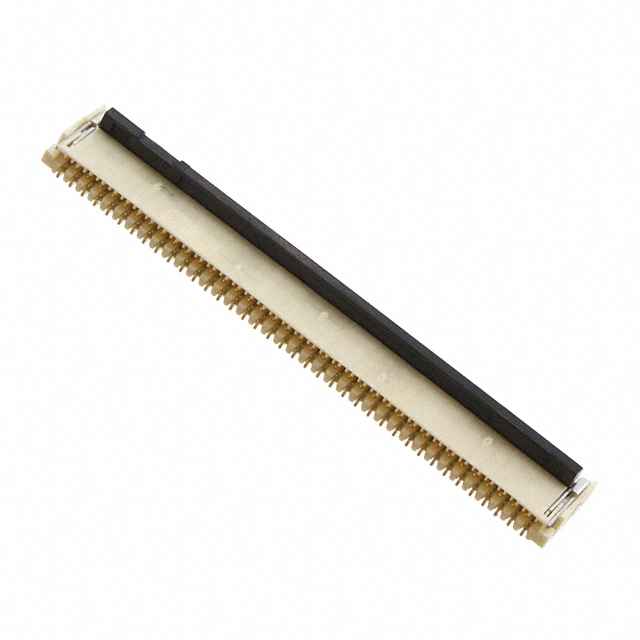

Molex 5034257591	Black	White	0.2 A	10	0.012 in	0.3 mm	Solder	Notched	1.2 mm	0.047 "	Gold	75	Polyphenylene Sulfide (PPS) Glass Filled	50 V	85 °C	-40 C	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	FPC	Backlock Flip Lock	Solder Retention	Right Angle Surface Mount	0.2 mm	UL94 V-0	Contacts Top and Bottom
