ALMD-EG3 Series

Catalog

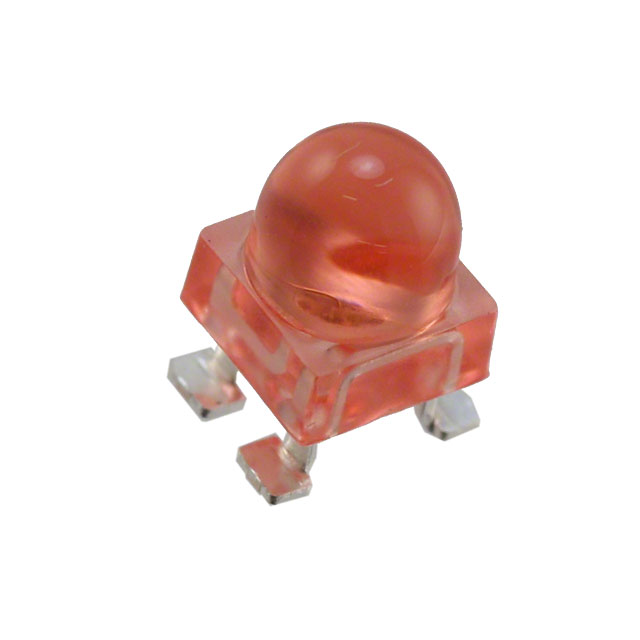

LED RED CLEAR ROUND SMD

Part	Wavelength - Dominant	Package / Case	Color	Mounting Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Configuration	Supplier Device Package	Lens Transparency	Viewing Angle	Current - Test	Height (Max) [Max] [z]	Wavelength - Peak	Lens Color	Lens Style
Broadcom Limited ALMD-EG3D-WY002	626 nm	4-SMD Gull Wing	Red	Surface Mount	8750 mcd	2.1 V	4.2 mm	4.2 mm	Standard	SMD	Clear	30 °	20 mA	7 mm	634 nm	Red	Round with Domed Top
Broadcom Limited ALMD-EG3D-WX002	626 nm	4-SMD Gull Wing	Red	Surface Mount	7400 mcd	2.1 V	4.2 mm	4.2 mm		4-SMD	Clear	30 °	20 mA	7 mm	634 nm		Round with Domed Top
Broadcom Limited ALMD-EG3D-VX002	626 nm	4-SMD Gull Wing	Red	Surface Mount	6750 mcd	2.1 V	4.2 mm	4.2 mm	Standard	SMD	Clear	30 °	20 mA	7 mm	634 nm	Red	Round with Domed Top
Broadcom Limited ALMD-EG3C-VX002
Broadcom Limited ALMD-EG3D-XY002	626 nm	4-SMD Gull Wing	Red	Surface Mount	9600 mcd	2.1 V	4.2 mm	4.2 mm		4-SMD	Clear	30 °	20 mA	7 mm	634 nm		Round with Domed Top
Broadcom Limited ALMD-EG3E-WX002	626 nm	4-SMD Gull Wing	Red	Surface Mount	7400 mcd	2.1 V	4.2 mm	4.2 mm		4-SMD		30 °	20 mA	7 mm	634 nm		Round with Domed Top
Broadcom Limited ALMD-EG3E-XY002	626 nm	4-SMD Gull Wing	Red	Surface Mount	9600 mcd	2.1 V	4.2 mm	4.2 mm		4-SMD		30 °	20 mA	7 mm	634 nm		Round with Domed Top
Broadcom Limited ALMD-EG3E-WY002	626 nm	4-SMD Gull Wing	Red	Surface Mount	8750 mcd	2.1 V	4.2 mm	4.2 mm		4-SMD		30 °	20 mA	7 mm	634 nm		Round with Domed Top
