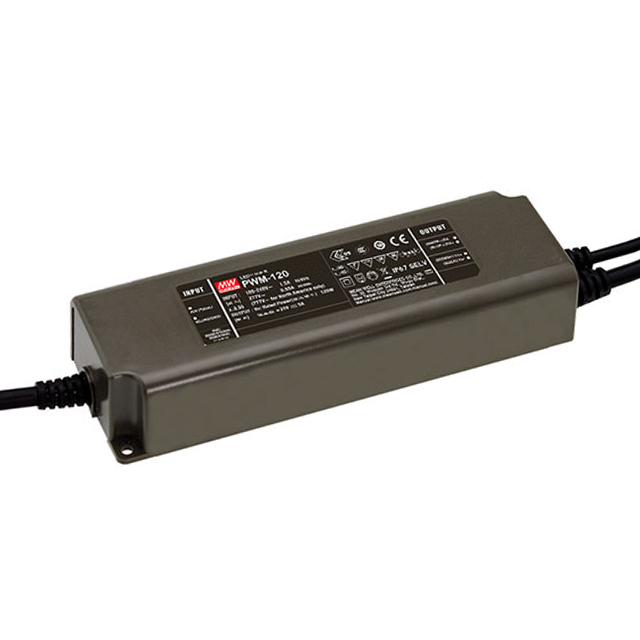

PWM-120 Series

Catalog

LED DRIVERS POWER SUPPLIES 120W

Part	Mounting Type	Type	Termination Style	Voltage - Isolation	Number of Outputs	Efficiency	Topology	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Voltage - Input (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ratings	Power (Watts)	Current - Output (Max)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Dimming

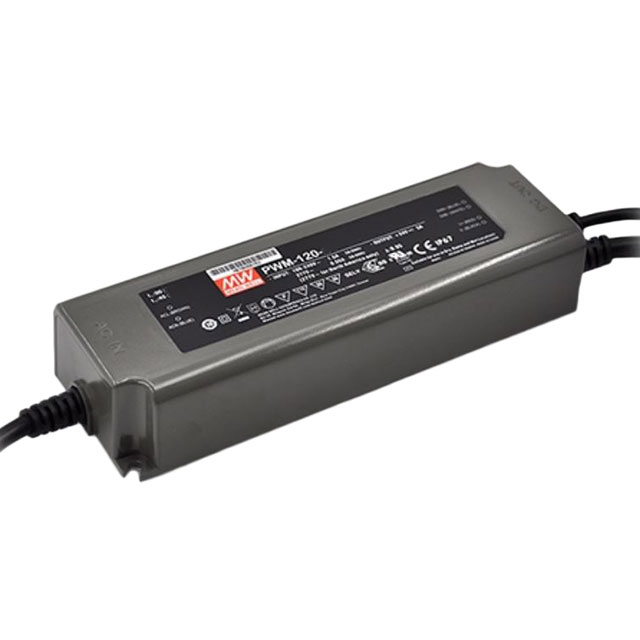

MEAN WELL USA Inc. PWM-120-24DA	Chassis Mount	Constant Voltage	Wire Leads	3750 VDC	1	90 %	AC DC Converter	CB CCC CE cURus EAC ENEC RCM	90 °C	-40 C	24 V	305 VAC	OCP OTP OVP SCP	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	IP67	120 W	5 A	90 VAC
MEAN WELL USA Inc. PWM-120-12DA	Chassis Mount	Constant Voltage	Wire Leads	3750 VDC	1	88 %	AC DC Converter	CB CCC CE cURus EAC ENEC RCM	90 °C	-40 C	12 V	305 VAC	OCP OTP OVP SCP	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	IP67	120 W		90 VAC	10 A
MEAN WELL USA Inc. PWM-120-36	Chassis Mount	Constant Voltage	Wire Leads	3750 VDC	1	90 %	AC DC Converter	CB CCC CE cURus ENEC	90 °C	-40 C	36 V	305 VAC	OCP OTP OVP SCP	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	IP67	122 W		90 VAC	3.4 A	Analog PWM
MEAN WELL USA Inc. PWM-120-24	Chassis Mount	Constant Voltage	Wire Leads	3750 VDC	1	90 %	AC DC Converter	CB CCC CE cURus ENEC	90 °C	-40 C	24 V	305 VAC	OCP OTP OVP SCP	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	IP67	120 W	5 A	90 VAC		Analog PWM
