0399-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .025-.037 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall	Length - Overall	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Accepts Square Pin Size	Accepts Square Pin Size	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

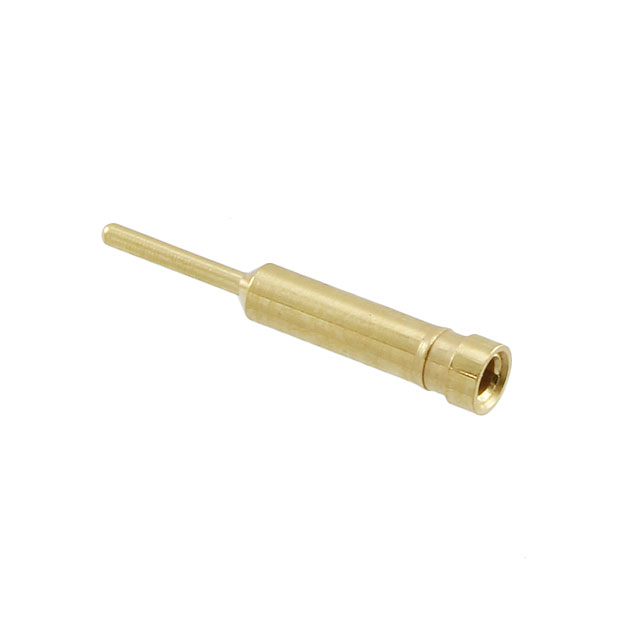

Mill-Max Manufacturing Corp. 0399-1-15-15-47-27-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	30 Áin	0.76 Ám	Press-Fit	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-1-15-01-47-01-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	200 Áin	5.08 Ám	Press-Fit	Tin-Lead	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-1-15-80-47-27-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	30 Áin	0.76 Ám	Press-Fit	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm

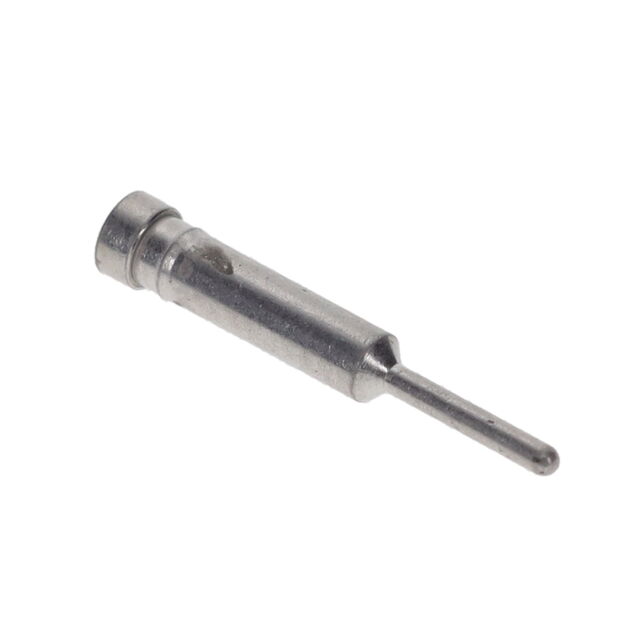

Mill-Max Manufacturing Corp. 0399-1-15-80-47-80-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	200 Áin	5.08 Ám	Press-Fit	Tin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-1-15-15-47-14-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	10 Áin	0.25 Ám	Press-Fit	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-1-15-01-47-27-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	30 Áin	0.76 Ám	Press-Fit	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-1-15-01-47-14-04-0	-55 C	125 °C	0.025 in	0.64 mm	0.072 "	1.83 mm	Standard Tail	11.18 mm	0.44 in	Beryllium Copper	0.062 in	1.57 mm	10 Áin	0.25 Ám	Press-Fit	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.23 in	5.84 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
