EVQ-P0 Series

Catalog

TACTILE SWITCH, EVQP0 SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 100 GF, 20MA AT 15VDC

Part	Contact Rating @ Voltage [x]	Actuator Height off PCB, Vertical [z]	Illumination	Operating Force	Actuator Type	Mechanical Life	Switch Travel [custom]	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Outline [x]	Outline [y]	Termination Style	Circuit	Mounting Type	Switch Function	Actuator Height off PCB, Vertical	Switch Travel	Contact Rating @ Voltage

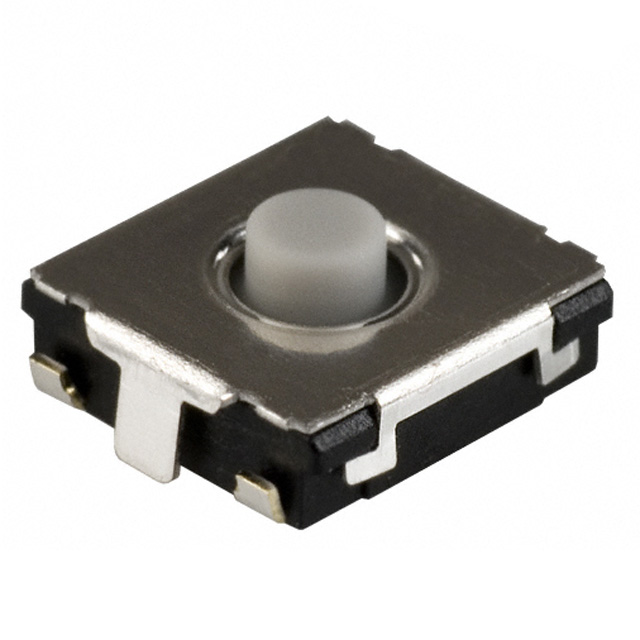

Panasonic Industrial Automation Sales EVQ-P0S02Q	0.02 A 15 VDC	2.5 mm	Non-Illuminated	100 gf	Standard	1000000 Cycles	0.3 mm	Top Actuated	85 °C	-40 °C	Grounding Pin	6.5 mm	6 mm	J Lead	SPST-NO	Surface Mount	Off-Mom
Panasonic Industrial Automation Sales EVQ-P0Q02Q	0.02 A 15 VDC	2.5 mm	Non-Illuminated	100 gf	Standard	1000000 Cycles	0.3 mm	Top Actuated	85 °C	-40 °C		6.5 mm	6 mm	J Lead	SPST-NO	Surface Mount	Off-Mom
Panasonic Industrial Automation Sales EVQ-P0P02B	0.02 A 15 VDC	2.5 mm	Non-Illuminated	60 gf	Standard	2000000 Cycles	0.3 mm	Top Actuated	85 °C	-40 °C	Grounding Pin	6.5 mm	6 mm	J Lead	SPST-NO	Surface Mount	Off-Mom

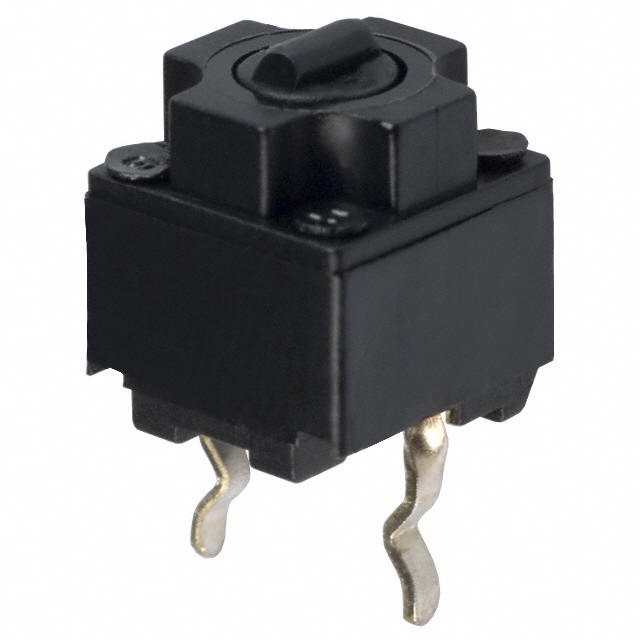

Panasonic Industrial Automation Sales EVQ-P0D07K			Non-Illuminated	130 gf	Standard	1000000 Cycles		Top Actuated	70 °C	-20 C		6.2 mm	6.2 mm	PC Pin	SPST-NO	Through Hole	Off-Mom	7.45 mm	0.5 mm	0.05 A 30 VDC
