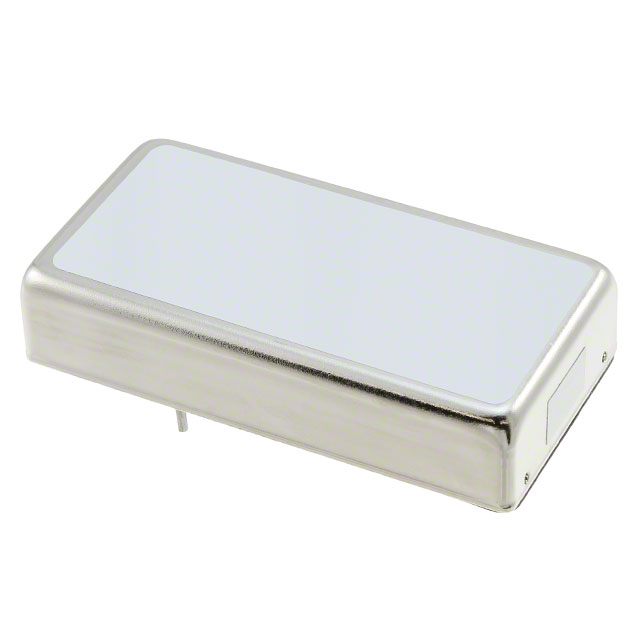

AEE00BB Series

Catalog

15W, 9-36VIN, DUAL, ±12V@±0.625A, 25.4 X 50.8 X 11.3MM , ROHS 6 UL APPROVED

Part	Applications	Voltage - Input (Min) [Min]	Type	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Output 1	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Package / Case	Features	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
ARTESYN / Advanced Energy AEE00BB18-LS	ITE (Commercial)	9 V	Isolated Module	-12 V	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	Through Hole	12 V	2	15 W	71 °C	-40 C	84 %	5-DIP Module	SCP	1.5 kV	625 mA	625 mA	36 V
ARTESYN / Advanced Energy AEE00BB36-LS	ITE (Commercial)	18 V	Isolated Module	-12 V	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	Through Hole	12 V	2	15 W	71 °C	-40 C	84 %	5-DIP Module	SCP	1.5 kV	625 mA	625 mA	75 V
