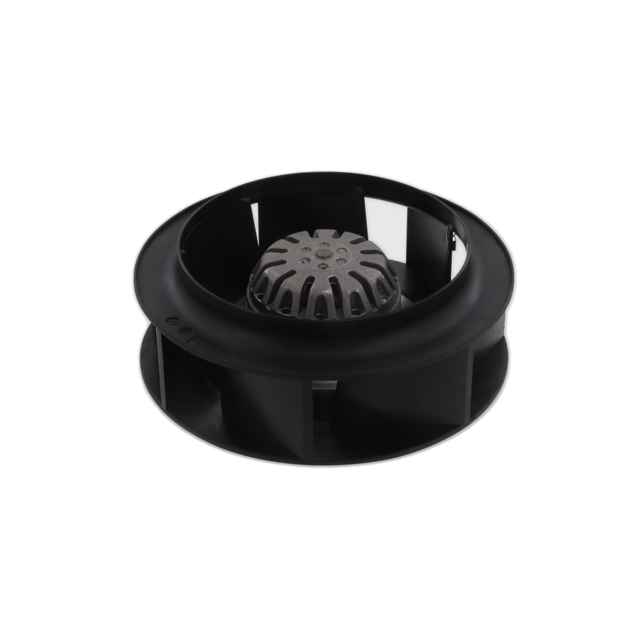

R2S175 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

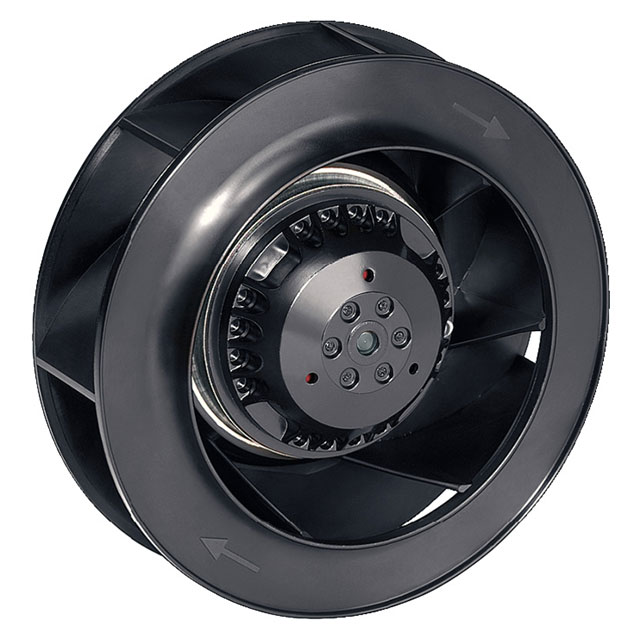

FAN BLOWER, R2E175 SERIES, MOTORIZED IMPELLER, 230 VAC, AC, 175 MM, 62 MM, 253 CFM
| Part | Material - Blade | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Termination | Width [y] | Bearing Type | Fan Type | Noise | Air Flow | Air Flow | Weight | Weight | Power (Watts) | Current Rating (Amps) | Ingress Protection | Features | Approval Agency | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | Round | 175 mm | 230 VAC | 2 Wire Leads | 62 mm | Ball | Motorized Impellers | 54 dB | 253 CFM | 7.08 mł/min | 907.2 g | 2 lbs | 60 W | |||||||||
 ebm-papst Inc. | Polyamide (PA) Nylon | Round | 175 mm | 230 VAC | 3 Wire Leads with QC Receptacles | 69 mm | Ball | Motorized Impellers | 57 W | 0.33 A | IP20 | Thermal Overload Protector (TOP) | CE EAC | 2440 RPM | 40 °C | -25 °C | -25 °C | 40 °C | |||||
ebm-papst Inc. | Polyamide (PA) Nylon | Round | 175 mm | 115 VAC | 2 Wire Leads | 62 mm | Ball | Motorized Impellers | 54 dB | 253 CFM | 7.08 mł/min | 907.2 g | 2 lbs | 65 W |
