TPS54262-EP Series

Enhanced Plastic 2A, 60V Step Down DC/DC Converter with Low Iq, Voltage Supervision and Reset

Catalog

Enhanced Plastic 2A, 60V Step Down DC/DC Converter with Low Iq, Voltage Supervision and Reset

Part	Operating Temperature [Max]	Operating Temperature [Min]	Function	Output Configuration	Package / Case	Package / Case [custom]	Package / Case	Voltage - Output (Max) [Max]	Topology	Number of Outputs	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Current - Output	Output Type	Grade	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Voltage - Input (Max) [Max]	Qualification	Mounting Type	Main Purpose	Regulator Topology	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Board Type

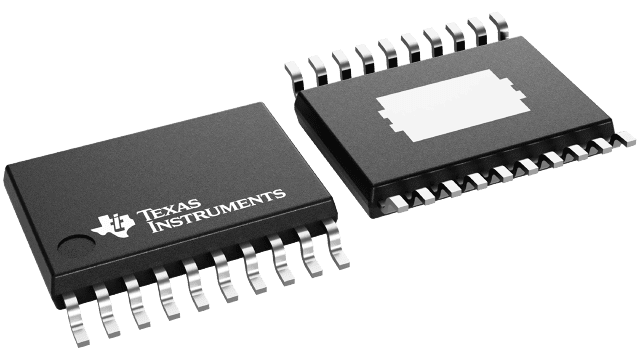

Texas Instruments TPS54262MPWPTEP	150 °C	-40 °C	Step-Down	Positive	20-PowerTSSOP	4.4 mm	0.173 in	18 V	Buck	1	0.8 V	3.6 V	2 A	Adjustable	Automotive	2.2 MHz	200 kHz	20-HTSSOP	48 V	AEC-Q100	Surface Mount

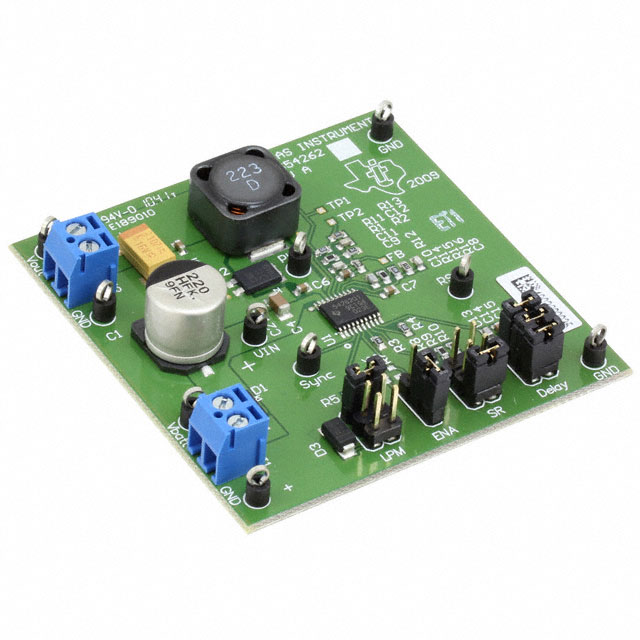

Texas Instruments TPS54262EVM													2 A									DC/DC Step Down	Buck	TPS54262	Non-Isolated	1	Board(s)	3.6 V	48 V	Fully Populated
Texas Instruments TPS54262QPWPRQ1	150 °C	-40 °C	Step-Down	Positive	20-PowerTSSOP	4.4 mm	0.173 in	18 V	Buck	1	0.8 V	3.6 V	2 A	Adjustable	Automotive	2.2 MHz	200 kHz	20-HTSSOP	48 V	AEC-Q100	Surface Mount

Catalog

Enhanced Plastic 2A, 60V Step Down DC/DC Converter with Low Iq, Voltage Supervision and Reset

Key Features

• Asynchronous Switch Mode RegulatorQualified for Automotive Applications3.6-V to 48-V Operating Range, Withstands Transients up to 60 V2-A Maximum Load Current50-µA Typical Quiescent Current200-kHz to 2.2-MHz Switching Frequency0.8 V ± 1.5% Voltage ReferenceHigh-Voltage Tolerant Enable InputSoft Start on Enable CycleSlew Rate Control on Internal Power SwitchLow-Power Mode for Light-Load ConditionsProgrammable Delay for Power-On ResetExternal Compensation for Error AmplifierReset Function Filter Time for Fast Negative TransientsProgrammable Overvoltage, Undervoltage Output MonitorThermal Sensing and ShutdownSwitch Current Limit ProtectionShort Circuit and Overcurrent Protection of FETJunction Temperature Range: –55°C to 150°C20-Pin HTSSOP PowerPAD™ PackageSupports Defense, Aerospace, and Medical Applications:Controlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct TraceabilityAsynchronous Switch Mode RegulatorQualified for Automotive Applications3.6-V to 48-V Operating Range, Withstands Transients up to 60 V2-A Maximum Load Current50-µA Typical Quiescent Current200-kHz to 2.2-MHz Switching Frequency0.8 V ± 1.5% Voltage ReferenceHigh-Voltage Tolerant Enable InputSoft Start on Enable CycleSlew Rate Control on Internal Power SwitchLow-Power Mode for Light-Load ConditionsProgrammable Delay for Power-On ResetExternal Compensation for Error AmplifierReset Function Filter Time for Fast Negative TransientsProgrammable Overvoltage, Undervoltage Output MonitorThermal Sensing and ShutdownSwitch Current Limit ProtectionShort Circuit and Overcurrent Protection of FETJunction Temperature Range: –55°C to 150°C20-Pin HTSSOP PowerPAD™ PackageSupports Defense, Aerospace, and Medical Applications:Controlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability

Description

The TPS54262-Q1 device is a 60-V, 2-A step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor with an integrated NMOS switching FET. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by-cycle current limit. The device also features low-power mode operation under light-load conditions which reduces the supply current to 50 µA (typical). By pulling the EN pin low, the supply shutdown current is reduced to 1 µA (typical). An open-drain reset signal indicates when the nominal output drops below the reset threshold set by an external resistor divider network. The output voltage start-up ramp is controlled by a soft-start capacitor. There is an internal undervoltage shut down which is activated when the input supply ramps down to 2.6 V. The device features a short circuit protection circuit which protects the device during overload condition, and also has a thermal shutdown protection. The TPS54262-Q1 device is a 60-V, 2-A step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor with an integrated NMOS switching FET. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by-cycle current limit. The device also features low-power mode operation under light-load conditions which reduces the supply current to 50 µA (typical). By pulling the EN pin low, the supply shutdown current is reduced to 1 µA (typical). An open-drain reset signal indicates when the nominal output drops below the reset threshold set by an external resistor divider network. The output voltage start-up ramp is controlled by a soft-start capacitor. There is an internal undervoltage shut down which is activated when the input supply ramps down to 2.6 V. The device features a short circuit protection circuit which protects the device during overload condition, and also has a thermal shutdown protection.
