7916A Series
Manufacturer: Belden Inc.
Beta
⌘K

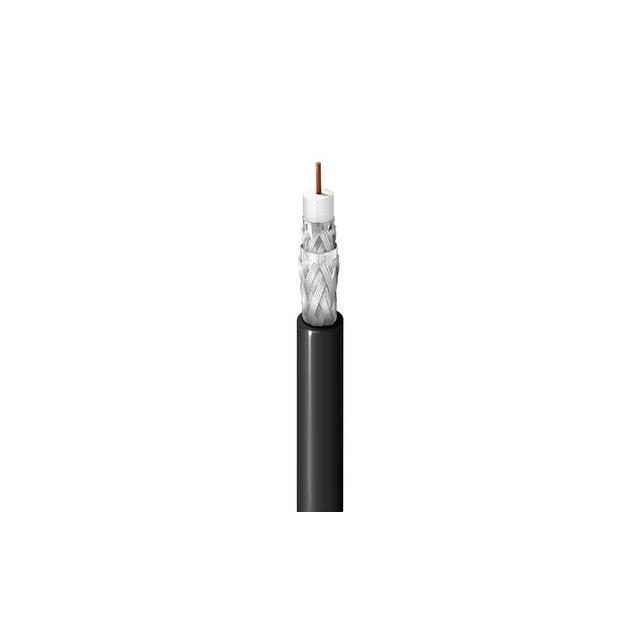

COAX 75 OHM RG6 18AWG
| Part | Dielectric Material | Shield Coverage | Conductor Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Impedance | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Length [x] | Length [x] | Cable Type | Shield Type | Cable Group | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Polyethylene (FPE) | 40 % 60 % 100 % | Copper Bare | Aluminum | 80 °C | -40 C | 83 | 0.18 in | 4.57 mm | 75 Ohms | Black | 7.57 mm | 0.298 " | Solid | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Coaxial | Braid Foil | RG-6 | 18 AWG |
 Belden Inc. | Foam Polyethylene (FPE) | 40 % 60 % 100 % | Copper Bare | Aluminum | 80 °C | -40 C | 83 | 0.18 in | 4.57 mm | 75 Ohms | Black | 7.57 mm | 0.298 " | Solid | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Coaxial | Braid Foil | RG-6 | 18 AWG |

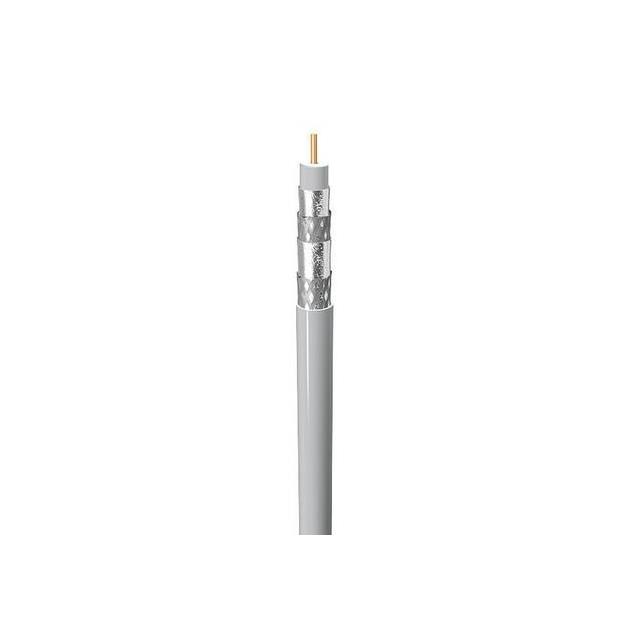

 Belden Inc. | Foam Fluorinated Ethylene Propylene (FFEP) | 40 % 60 % 100 % | Copper Bare | Aluminum | 83 | 0.17 in | 4.32 mm | 75 Ohms | Natural | 6.3 mm | 0.248 " | Solid | Low Smoke Poly-Vinyl Chloride (LSPVC) | 304.8 m | 1000 ft | Coaxial - Plenum | Braid Foil | RG-6 | 18 AWG |
