746-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 38POS 0.125

Part	Termination Rows	Material - Insulation	Number of Rows	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Contact Material	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Card Type	Termination	Contact Finish	Number of Positions	Gender	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Color	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]
EDAC Inc. 746-038-541-506	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit Wire Wrap	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black
EDAC Inc. 746-038-525-501	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black
EDAC Inc. 746-038-527-101	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black
EDAC Inc. 746-038-541-206		Polyester Thermoplastic			3.18 mm	0.125 in	Copper Alloy	Dual	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black	2	19	2

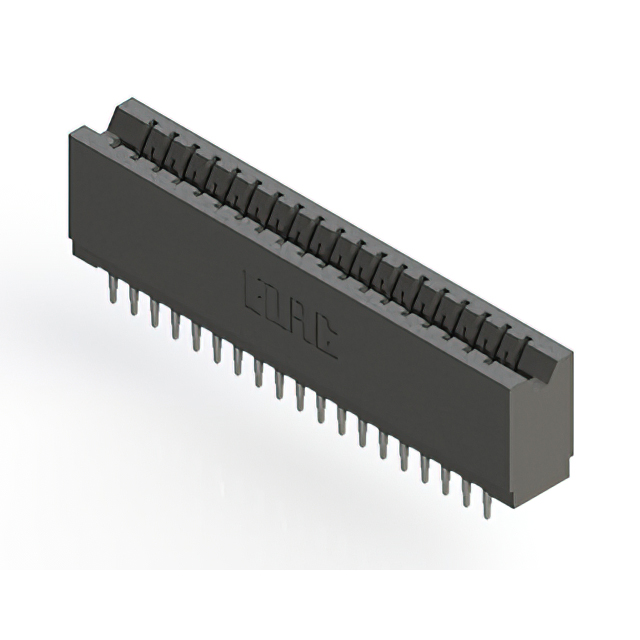

EDAC Inc. 746-038-520-606		Polyester Thermoplastic			3.18 mm	0.125 in	Copper Alloy	Dual	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Press-Fit	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black	2	19	2
EDAC Inc. 746-038-541-501	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit Wire Wrap	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black

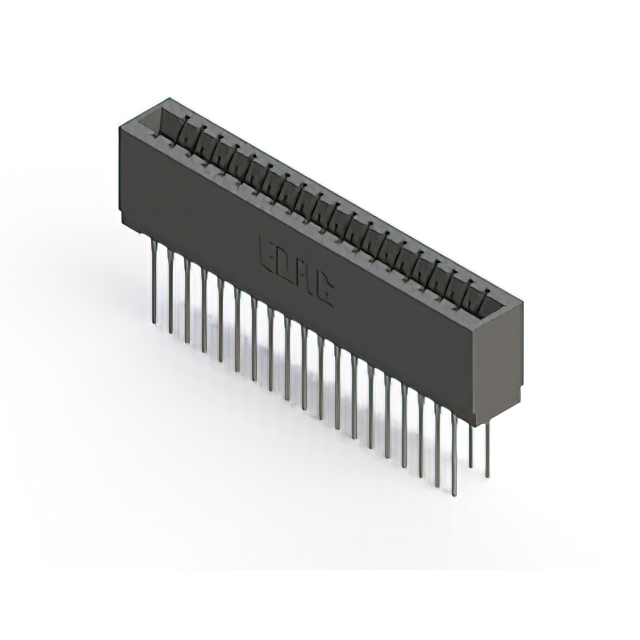

EDAC Inc. 746-038-541-201		Polyester Thermoplastic			3.18 mm	0.125 in	Copper Alloy	Dual	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black	2	19	2

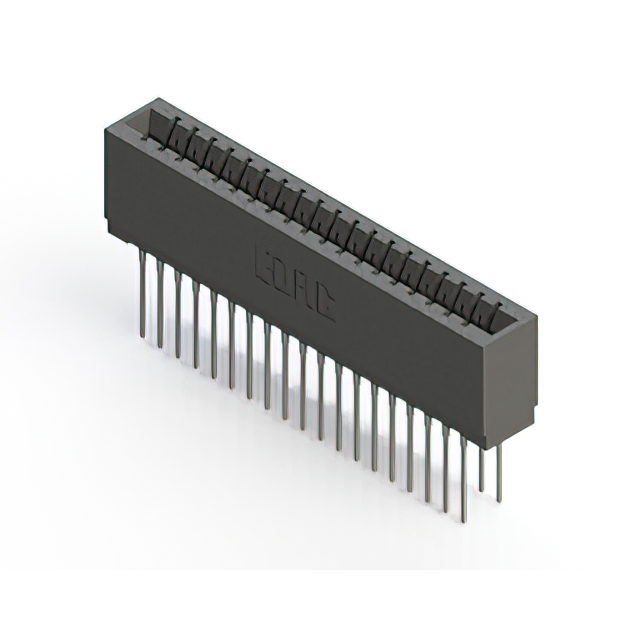

EDAC Inc. 746-038-540-201		Polyester Thermoplastic			3.18 mm	0.125 in	Copper Alloy	Dual	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black	2	19	2

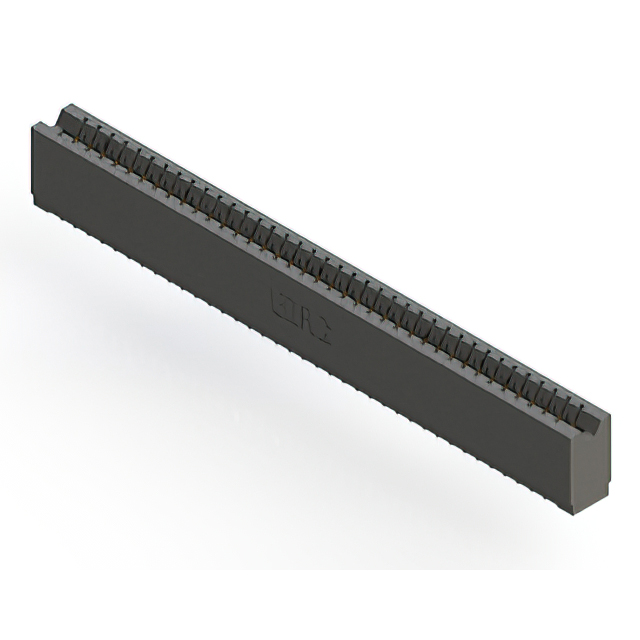

EDAC Inc. 746-038-525-106	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black
EDAC Inc. 746-038-525-101	1	Polyester Thermoplastic	1	38	3.18 mm	0.125 in	Copper Alloy	Single	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Press-Fit	Gold	38	Female	Cantilever	Through Hole	30 Áin	0.76 Ám	Black
