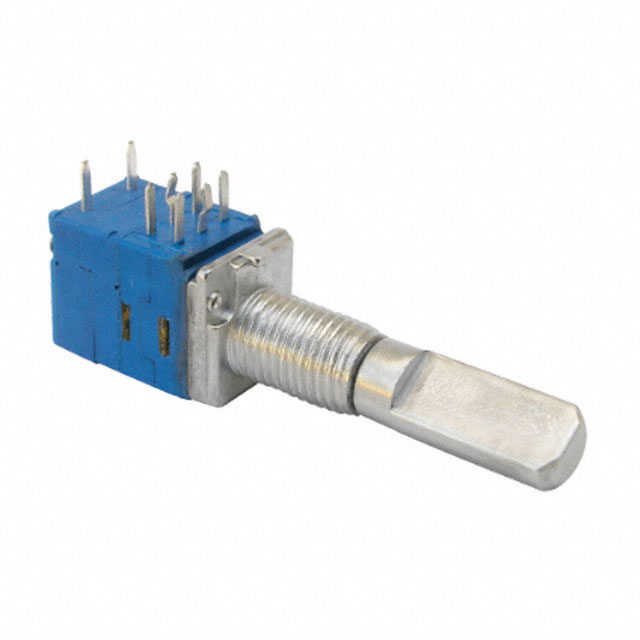

PTR902 Series

Catalog

POT 500K OHM 1/40W CARBON LOG

Part	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Actuator Type	Adjustment Type	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Mounting Type	Actuator Length [x]	Actuator Length [x]	Termination Style	Taper	Resistance (Ohms)	Number of Turns	Rotation	Built in Switch	Resistive Material	Bushing Thread	Power (Watts)	Power (Watts)	Number of Gangs	Resistance (Ohms) [custom]	Power (Watts)	Resistance (Ohms)
Bourns Inc. PTR902-2020K-A504	11.3 mm	0.374 "	9.5 mm	0.445 "	Knurled and Slotted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.787 in	20 mm	Board Locks PC Pins	Logarithmic	500 kOhms	1	300 ░	Rotary SPST	Carbon	M7 x 0.75	1/40	25 mW	2
Bourns Inc. PTR902-2020F-A503	11.3 mm	0.374 "	9.5 mm	0.445 "	Flatted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.787 in	20 mm	Board Locks PC Pins	Logarithmic		1	300 ░	Rotary SPST	Carbon	M7 x 0.75	1/40	25 mW	2	50 kOhms
Bourns Inc. PTR902-1220F-B103	11.3 mm	0.374 "	9.5 mm	0.445 "	Flatted	Side Adjustment	10 %	6 mm	0.236 in	Panel Mount	0.787 in	20 mm	Board Locks PC Pins	Linear		1	300 ░	Rotary SPST With Detent	Carbon	M7 x 0.75		50 mW	2		0.05 W	10k
Bourns Inc. PTR902-2015K-B502	11.3 mm	0.374 "	9.5 mm	0.445 "	Knurled and Slotted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.591 in	15 mm	Board Locks PC Pins	Linear	5 kOhms	1	300 ░	Rotary SPST	Carbon	M7 x 0.75		50 mW	2		0.05 W

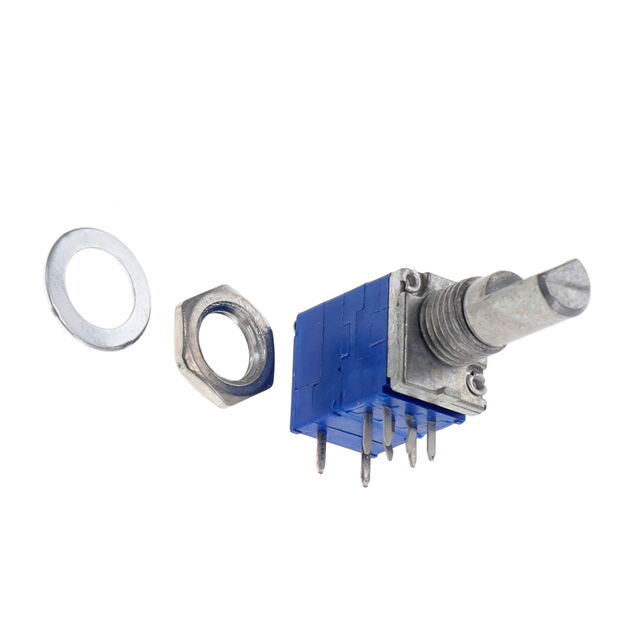

Bourns Inc. PTR902-2015F-C104	11.3 mm	0.374 "	9.5 mm	0.445 "	Flatted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.591 in	15 mm	Board Locks PC Pins	Reverse Logarithmic		1	300 ░	Rotary SPST	Carbon	M7 x 0.75	1/40	25 mW	2			100k
Bourns Inc. PTR902-2015F-B103	11.3 mm	0.374 "	9.5 mm	0.445 "	Flatted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.591 in	15 mm	Board Locks PC Pins	Linear		1	300 ░	Rotary SPST	Carbon	M7 x 0.75		50 mW	2		0.05 W	10k
Bourns Inc. PTR902-1020K-A502	11.3 mm	0.374 "	9.5 mm	0.445 "	Knurled and Slotted	Side Adjustment	10 %	6 mm	0.236 in	Panel Mount	0.787 in	20 mm	Board Locks PC Pins	Logarithmic	5 kOhms	1	300 ░	Rotary SPST	Carbon	M7 x 0.75	1/40	25 mW	2
Bourns Inc. PTR902-2015K-A103	11.3 mm	0.374 "	9.5 mm	0.445 "	Knurled and Slotted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.591 in	15 mm	Board Locks PC Pins	Logarithmic		1	300 ░	Rotary SPST	Carbon	M7 x 0.75	1/40	25 mW	2			10k

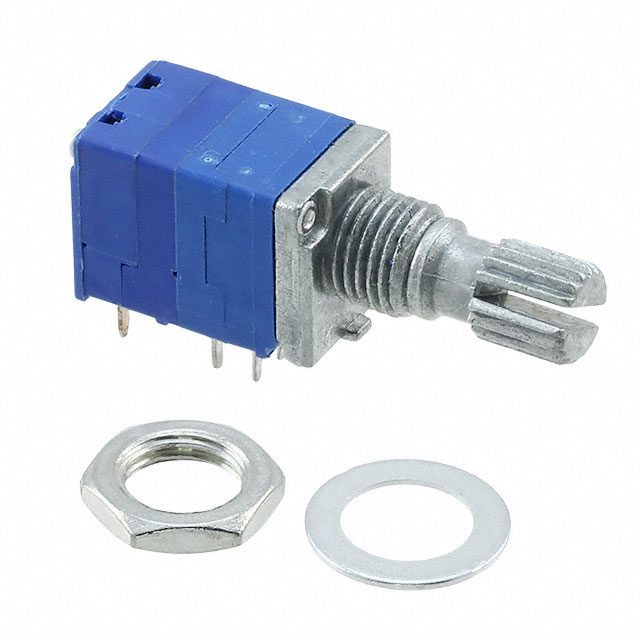

Bourns Inc. PTR902-2015K-B103	11.3 mm	0.374 "	9.5 mm	0.445 "	Knurled and Slotted	Side Adjustment	20 %	6 mm	0.236 in	Panel Mount	0.591 in	15 mm	Board Locks PC Pins	Linear		1	300 ░	Rotary SPST	Carbon	M7 x 0.75		50 mW	2		0.05 W	10k
