SD-PNL04 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN PLUG FMALE 4POS SOLDER CUP
| Part | Number of Positions | Ingress Protection | Fastening Type | Backshell Material, Plating | Color | Connector Type | Contact Finish - Mating | Shell Size - Insert | Features | Cable Opening | Cable Opening | Insert Material [custom] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shielding | Shell Finish | Material Flammability Rating | Shell Material | Orientation | Contact Material | Termination | Contact Finish Thickness - Mating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

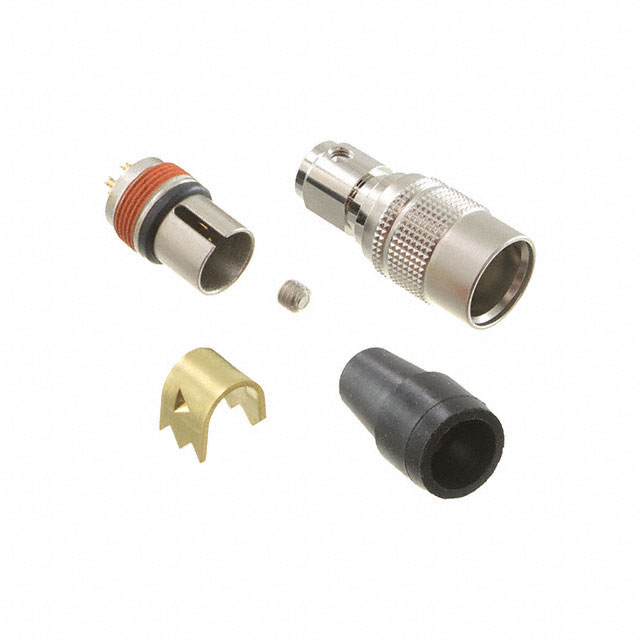

 Adam Tech | 4 | IP67 - Dust Tight Waterproof | Threaded | Brass Nickel | Black Silver | Plug Female Sockets | Gold | M8-4 | Backshell Cable Clamp Strain Relief | 0.197 in | 5 mm | Nylon 4/6 Polyamide (PA46) | Free Hanging (In-Line) | 5 µin | 0.127 µm | Metal | Unshielded | Nickel | UL94 V-0 | Zinc Alloy | Keyed | Phosphor Bronze | |||

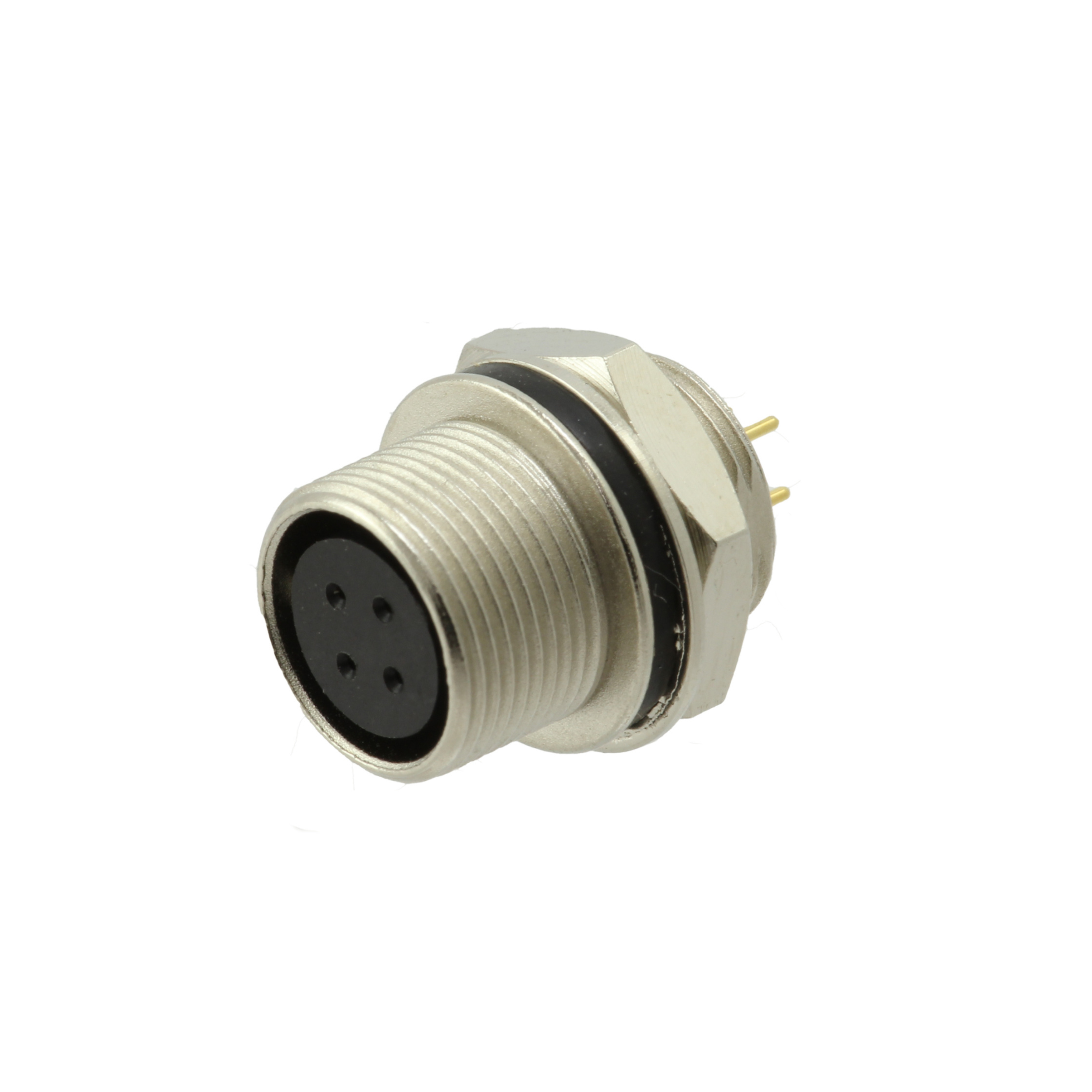

 Adam Tech | 4 | IP67 - Dust Tight Waterproof | Threaded | Silver | Receptacle Female Sockets | Gold | M8-4 | Nylon 4/6 Polyamide (PA46) | Panel Mount Through Hole | Metal | Unshielded | Nickel | Zinc Alloy | Keyed | Brass | Solder | Flash | Bulkhead - Rear Side Nut |
