51720 Series

Catalog

CONN HDR BLADE PWR 28POS EDGE MT

...

Part	Pitch [x]	Pitch [x]	Connector Type	Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Mounting Type	Connector Style	Color	Material Flammability Rating	Contact Layout, Typical	Number of Positions

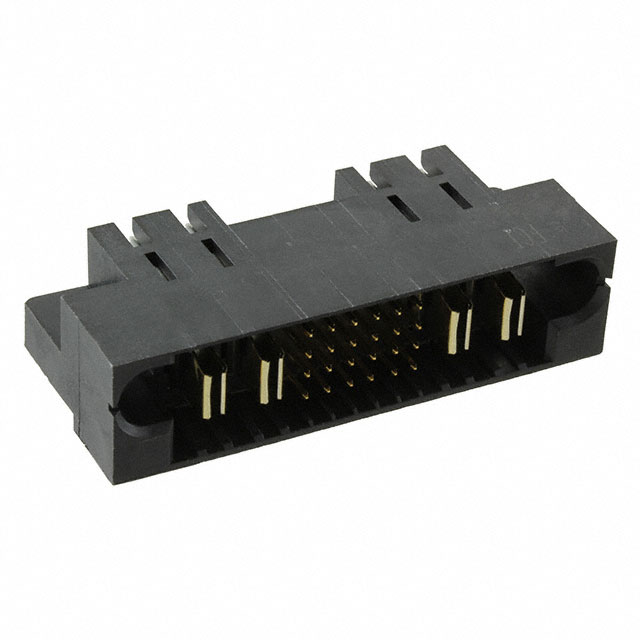

Amphenol ICC (FCI) 51720-10202402AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	28	Gold or Gold GXT™	-20 C	105 ░C	24	4	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10601602ABLF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Mating Guide	0.76 Ám	30 Áin	All	24	Gold or Gold GXT™	-20 C	105 ░C	16	8	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10208002AA	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	84	Gold or Gold GXT™	-20 C	105 ░C	80	4	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10202403AA	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	29	Gold or Gold GXT™	-20 C	105 ░C	24	5	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10102401AA	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	26	Gold or Gold GXT™	-20 C	105 ░C	24	2	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10302005AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	27	Gold or Gold GXT™	-20 C	105 ░C			Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0	7 Power 20
Amphenol ICC (FCI) 51720-10400804AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All		Gold or Gold GXT™	-20 C	105 ░C	8	8	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0		16
Amphenol ICC (FCI) 51720-10401602AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	22 positions	Gold or Gold GXT™	-20 C	105 ░C	16	6	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
Amphenol ICC (FCI) 51720-10101601AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	18	Gold or Gold GXT™	-20 C	105 ░C			Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0	2 16
Amphenol ICC (FCI) 51720-10203206AALF	2.54 mm	0.1 in	Header Male Pins and Blades	Solder	Board Lock Mating Guide	0.76 Ám	30 Áin	All	40	Gold or Gold GXT™	-20 C	105 ░C	32	8	Board Edge Right Angle Through Hole	Blade Power	Black	UL94 V-0
