SS-6488S Series

Catalog

MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR JACK STANDARD HORIZONTAL (90) 8P 8C PG4 SHIELDED RMK4-KEYED

Part	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Mounting Type	Contact Material	Shielding	Contact Finish	Features	Termination	Tab Direction	Number of Rows	Connector Type	Orientation	Number of Ports	Number of Positions/Contacts

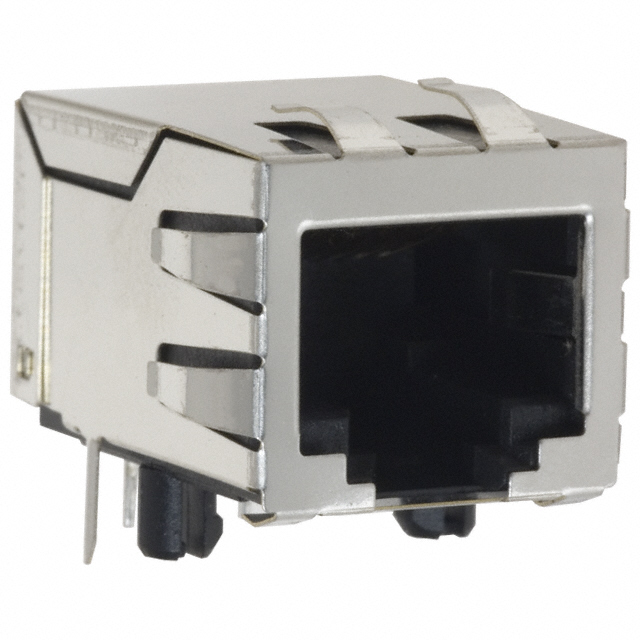

Bel Fuse Inc. SS-6488S-A-PG4-BA-RMK4	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	EMI Finger Shielded	Gold	Board Lock Keyed	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)

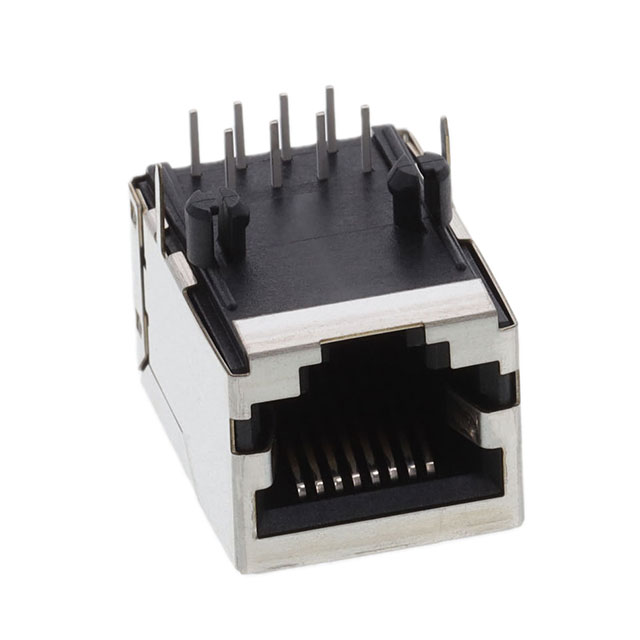

Bel Fuse Inc. SS-6488S-A-NF-01-M07	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	EMI Finger Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)

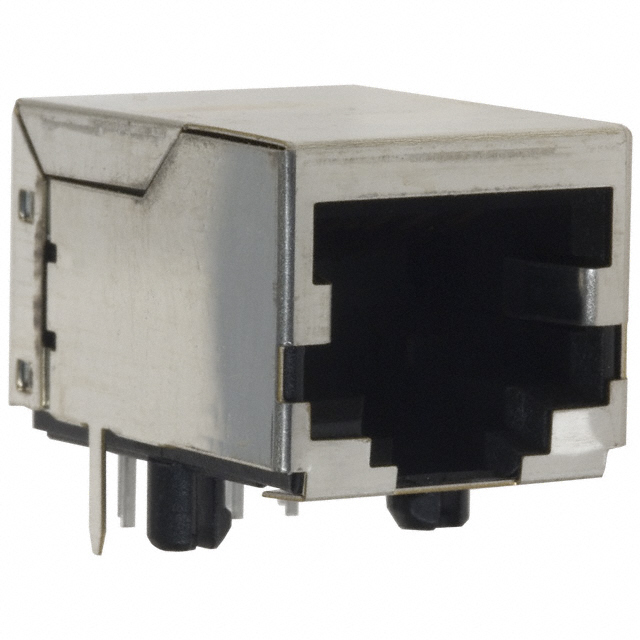

Bel Fuse Inc. SS-6488S-A-NF	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)

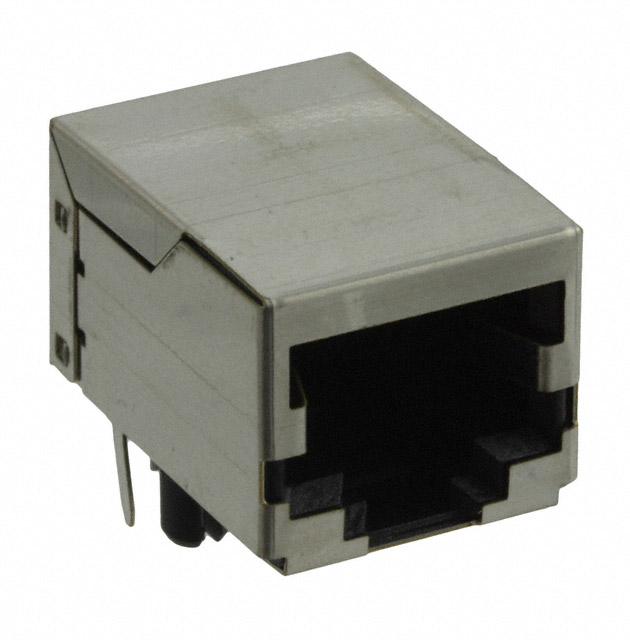

Bel Fuse Inc. SS-6488S-A-NF-50	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)
Bel Fuse Inc. SS-6488S-A-FLS-01	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	EMI Finger Shielded	Gold	Board Lock Panel Stops	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)
Bel Fuse Inc. SS-6488S-A-PG4-1-BA-50	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	EMI Finger Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)
Bel Fuse Inc. SS-6488S-A-NF-K1	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	Shielded	Gold	Board Lock Keyed	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)

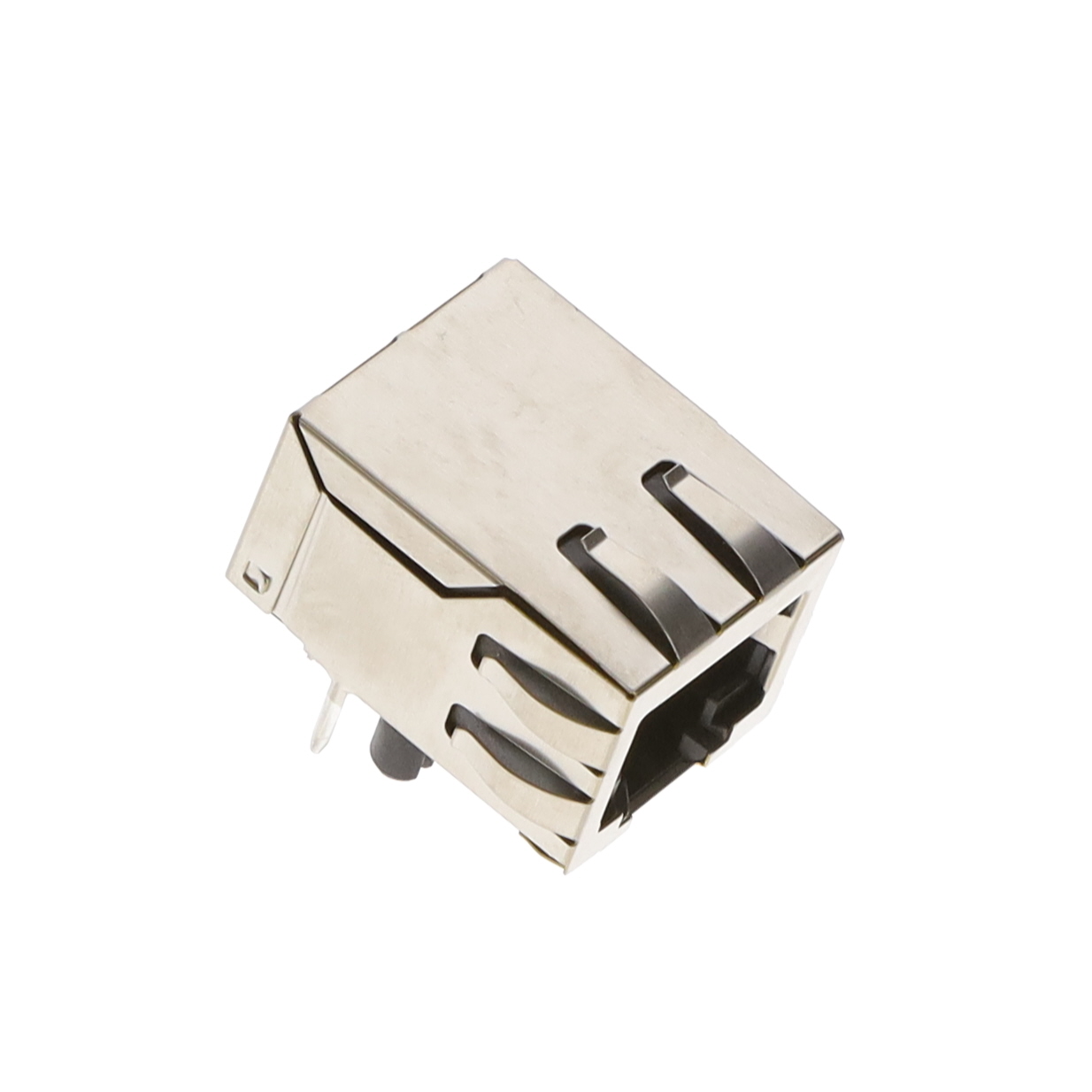

Bel Fuse Inc. SS-6488S-A-PG4-BA-50	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	EMI Finger Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)
Bel Fuse Inc. SS-6488S-A-NF-SB02	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	Shielded	Gold	Board Lock Shorting	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)

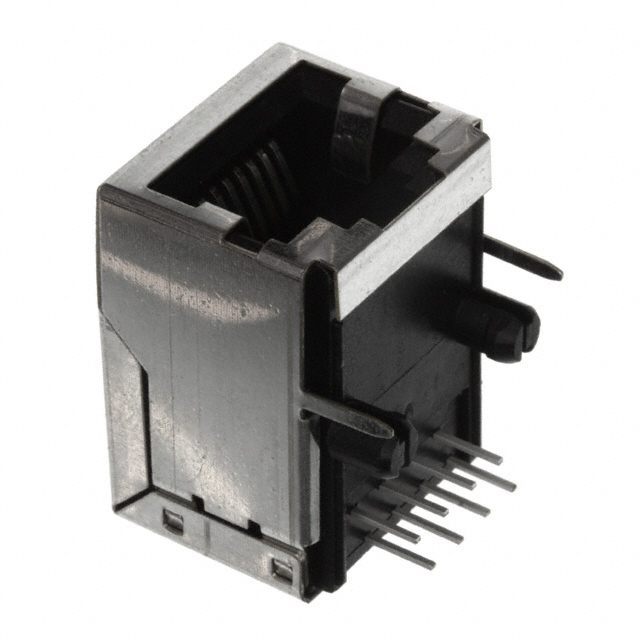

Bel Fuse Inc. SS-6488S-A-NF-1	30 Áin	0.76 Ám	Thermoplastic	85 °C	-40 C	Does Not Contain LED	Through Hole	Copper Alloy	Shielded	Gold	Board Lock	Solder	Down	1	Jack	90 °	1	8p8c (RJ45 Ethernet)
