1969807 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

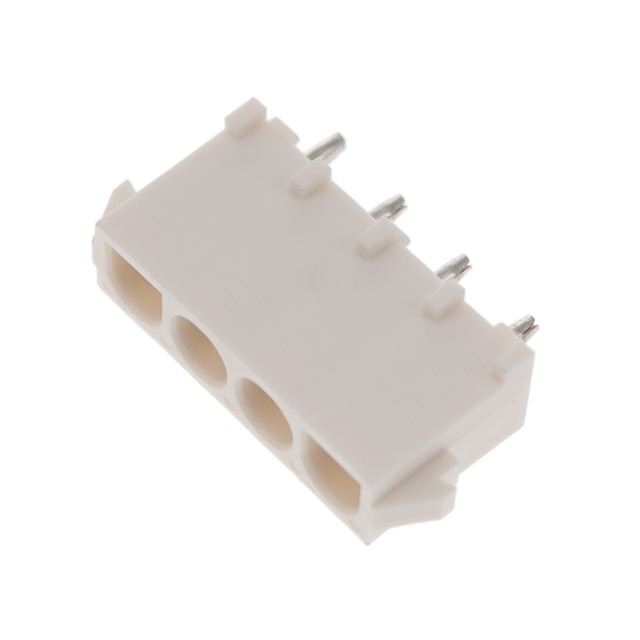

CONN HEADER VERT 4POS 6.35MM
| Part | Contact Finish - Post | Termination | Pitch - Mating | Pitch - Mating | Features | Current Rating (Amps) | Number of Rows | Contact Length - Post | Contact Length - Post | Number of Positions | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Insulation Height | Insulation Height | Insulation Color | Contact Material | Style | Mounting Type | Connector Type | Contact Shape | Number of Positions Loaded | Insulation Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | Solder | 6.35 mm | 0.25 in | Glow Wire Compliant | 12 A | 1 | 3.94 mm | 0.155 " | 4 | Locking Ramp | -40 °C | 105 ░C | Shrouded - 4 Wall | 150 Áin | 3.81 Ám | Male Pin | 0.58 in | 14.73 mm | Natural | Phosphor Bronze | Board to Cable/Wire | Through Hole | Header | Circular | All | Nylon Polyamide (PA) | UL94 V-0 |
