TPS82130 Series

17-V input 3-A step-down converter module with integrated inductor

Catalog

17-V input 3-A step-down converter module with integrated inductor

Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Utilized IC / Part	Current - Output	Supplied Contents	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Package / Case	Supplier Device Package	Features	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications

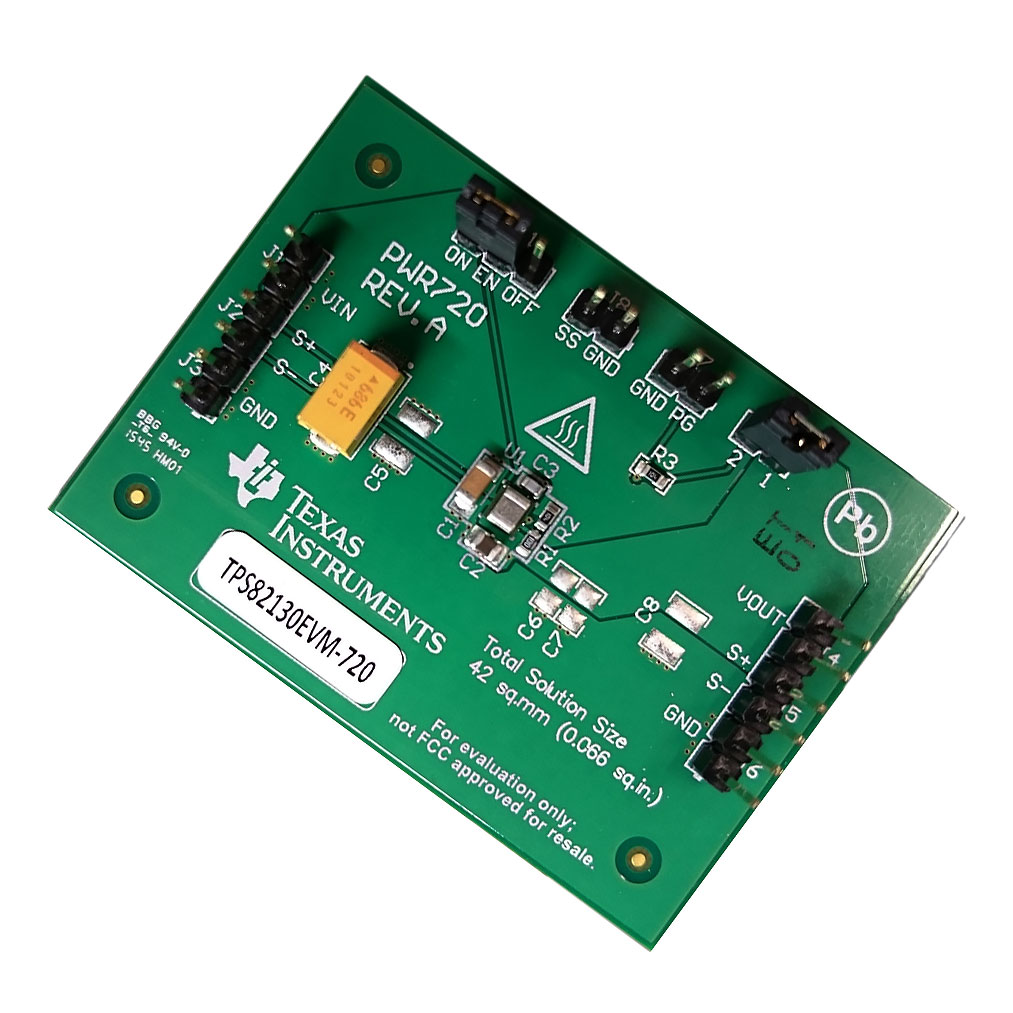

Texas Instruments TPS82130EVM-720	DC/DC Step Down	17 V	3 V	Buck	TPS82130	3 A	Board(s)	1.8 V	Fully Populated	Non-Isolated	1
Texas Instruments TPS82130SILT												0.9 V	5 V	0.12 in	0.06 "	1.5 mm 2.8 mm 3 mm	0.11 in	17 V	Non-Isolated PoL Module	8-LDFN Exposed Pad Module	8-uSIP (3x2.8)	OTP	3 V	Surface Mount	1	125 °C	-40 °C	3 A	ITE (Commercial)
Texas Instruments TPS82130SILR												0.9 V	5 V	0.12 in	0.06 "	1.5 mm 2.8 mm 3 mm	0.11 in	17 V	Non-Isolated PoL Module	8-LDFN Exposed Pad Module	8-uSIP (3x2.8)	OTP	3 V	Surface Mount	1	125 °C	-40 °C	3 A	ITE (Commercial)

Catalog

17-V input 3-A step-down converter module with integrated inductor

Key Features

• 3-mm × 2.8-mm × 1.5-mm MicroSiP package3-V to 17-V input range3-A continuous output currentDCS-Control topologyPower save mode for light-load efficiency20-µA operating quiescent current0.9-V to 6-V adjustable output voltage100% duty cycle for lowest dropoutPower-good outputProgrammable soft start-up with trackingThermal shutdown protection–40°C to 125°C operating temperature rangeMandarin data sheet availableCreate a custom design using the TPS82130 with theWEBENCH Power Designer3-mm × 2.8-mm × 1.5-mm MicroSiP package3-V to 17-V input range3-A continuous output currentDCS-Control topologyPower save mode for light-load efficiency20-µA operating quiescent current0.9-V to 6-V adjustable output voltage100% duty cycle for lowest dropoutPower-good outputProgrammable soft start-up with trackingThermal shutdown protection–40°C to 125°C operating temperature rangeMandarin data sheet availableCreate a custom design using the TPS82130 with theWEBENCH Power Designer

Description

The TPS82130 is a 17-V input 3-A step-down converter MicroSiP power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2 MHz and automatically enters power save mode operation at light load currents. In power save mode, the device operates with 20-µA (typical) quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The TPS82130 is a 17-V input 3-A step-down converter MicroSiP power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2 MHz and automatically enters power save mode operation at light load currents. In power save mode, the device operates with 20-µA (typical) quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation.
