GEC01S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 1POS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Mounting Type	Number of Positions Loaded	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Connector Type	Style	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Fastening Type	Number of Positions	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Number of Rows	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating
Sullins Connector Solutions GEC01SFBN-M30	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Surface Mount	All	Phosphor Bronze	Square	2.54 çm	100 çin	Unshrouded	Breakaway Header	Board to Board Cable	Tin	0.318 "	8.08 mm	Male Pin	Push-Pull	1	Black	Solder	-65 ░C	150 °C	UL94 V-0	3 A	1	0.1 in	2.54 mm
Sullins Connector Solutions GEC01SAAN	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Through Hole	All	Phosphor Bronze	Square	2.54 çm	100 çin	Unshrouded	Breakaway Header	Board to Board Cable	Tin	0.23 in		Male Pin	Push-Pull	1	Black	Solder	-65 ░C	150 °C	UL94 V-0	3 A	1	0.1 in	2.54 mm	0.12 in	3.05 mm	0.45 "	11.43 mm	5.84 mm
Sullins Connector Solutions GEC01SABN-M30	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Surface Mount	All	Phosphor Bronze	Square	2.54 çm	100 çin	Unshrouded	Breakaway Header	Board to Board Cable	Tin	0.23 in		Male Pin	Push-Pull	1	Black	Solder	-65 ░C	150 °C	UL94 V-0	3 A	1	0.1 in	2.54 mm					5.84 mm

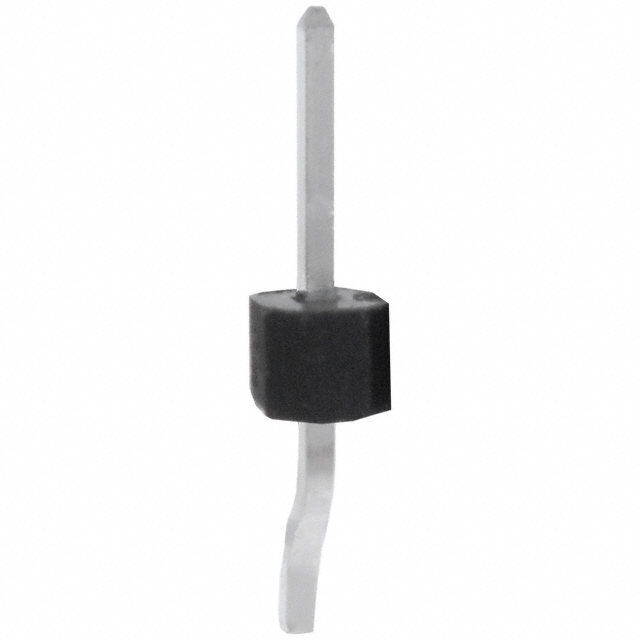

Sullins Connector Solutions GEC01SBSN-M89	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Surface Mount Right Angle	All	Phosphor Bronze	Square	2.54 çm	100 çin	Unshrouded	Breakaway Header	Board to Board Cable	Tin	0.23 in		Male Pin	Push-Pull	1	Black	Solder	-65 ░C	150 °C	UL94 V-0	3 A	1	0.14 in	3.56 mm					5.84 mm
