6501-7051 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

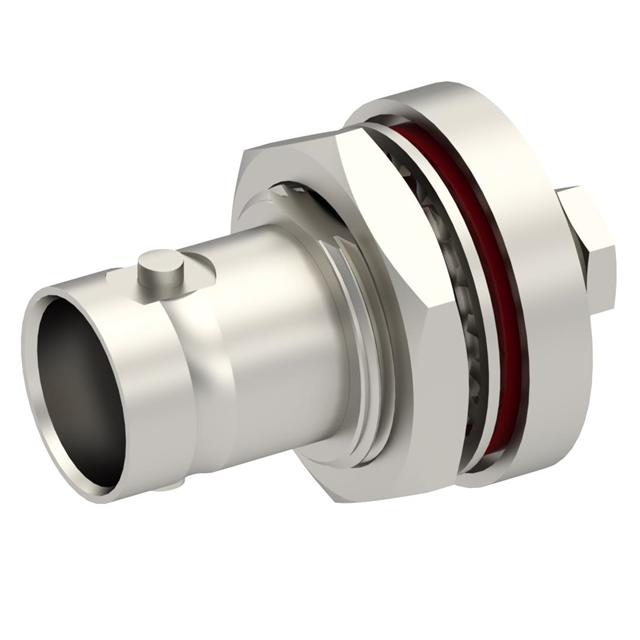

BNC / STRAIGHT JACK FEMALE CLAMP
| Part | Dielectric Material | Body Material | Body Finish | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Center Contact Material | Connector Type | Frequency - Max [Max] | Connector Style | Shield Termination | Contact Termination | Fastening Type | Mounting Type | Cable Group | Number of Ports | Housing Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | Nickel | 500 | Gold | -65 ░C | 165 °C | 50 Ohms | Beryllium Copper | Female Socket Jack | 4 GHz | BNC | Clamp | Solder | Bayonet Lock | Panel Mount | 188 316 RG-174 | 1 | Silver | Bulkhead - Front Side Nut |
