PSA.0S Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 1P GOLD SLDR CUP

Part	Material Flammability Rating	Shell Size - Insert	Number of Positions	Connector Type	Features	Ingress Protection	Shell Finish	Primary Material	Contact Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Backshell Material, Plating	Mounting Type	Shell Material	Fastening Type	Contact Finish - Mating	Orientation	Color	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Mounting Feature	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Group	Shield Termination	Body Finish	Includes	Center Contact Material	Contact Termination	Connector Style	Housing Color	Body Material	Dielectric Material	Impedance	Center Contact Plating	Mating Cycles	Number of Ports	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO PSA.0S.116.CTLC32Z	UL94 V-0	116	1	Receptacle Female Sockets	Backshell	IP50	Chrome	Metal	Bronze	Shielded	-55 °C	250 °C	12 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver	2.2 mm 3.2 mm	0.087 in 0.126 in	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut
LEMO PSA.0S.901.CLTC22	UL94 V-0	302	2	Female Sockets Male Pins Receptacle	Backshell	IP50	Chrome	Metal	Constantan Copper	Shielded	-55 °C	250 °C	10 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver			Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	0.087 in	0.051 in	1.3 mm	2.2 mm
LEMO PSA.0S.302.CLLK62	UL94 V-0	302	2	Female Sockets Male Pins Receptacle	Backshell	IP50	Chrome	Metal	Brass Bronze	Shielded	-55 °C	250 °C	10 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver			Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	0.244 in	0.224 in	5.7 mm	6.2 mm
LEMO PSA.0S.650.CTAC27				Male Pin Receptacle		IP50					-55 °C	250 °C					Push-Pull							Bulkhead - Rear Side Nut					178 RG-174	Clamp	Chrome	1 Connector 1 Lockwasher 1 Nut	Brass	Solder	Triaxial	Silver	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	1000

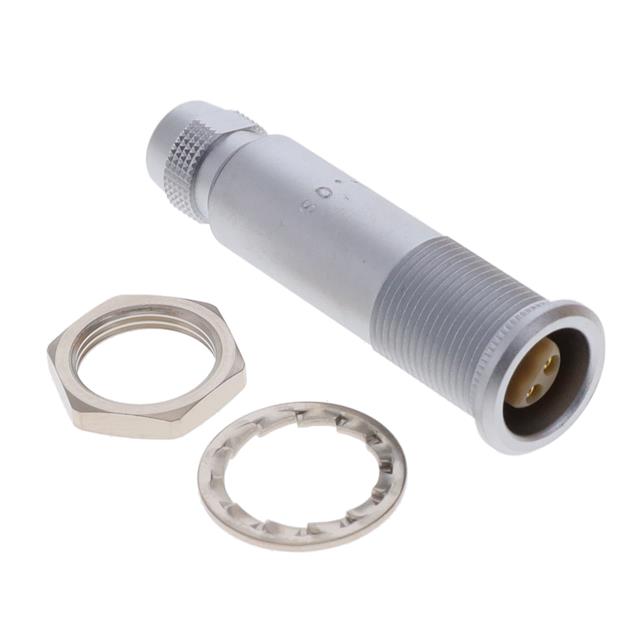

LEMO PSA.0S.303.CLLC32	UL94 V-0	303		Female Sockets Male Pins Receptacle	Backshell	IP50	Chrome	Metal	Brass Bronze	Shielded	-55 °C	250 °C	7 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver	2.2 mm 3.2 mm	0.087 in 0.126 in	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO PSA.0S.650.CLLL27				Female Socket Receptacle		IP50					-55 °C	250 °C					Push-Pull							Bulkhead - Rear Side Nut					178 RG-174	Clamp	Chrome	1 Connector 1 Lockwasher 1 Nut	Beryllium Copper	Solder	Triaxial	Silver	Brass	Polyetheretherketone (PEEK)	50 Ohms	Gold	1000	1
LEMO PSA.0S.303.CLLC42	UL94 V-0	303		Female Sockets Male Pins Receptacle	Backshell	IP50	Chrome	Metal	Brass Bronze	Shielded	-55 °C	250 °C	7 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver			Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	0.165 in	0.126 in	3.2 mm																4.2 mm
LEMO PSA.0S.650.CTLC42				Female Socket Receptacle		IP50					-55 °C	250 °C					Push-Pull							Bulkhead - Rear Side Nut					178 RG-174	Clamp	Chrome	1 Connector 1 Lockwasher 1 Nut	Beryllium Copper	Solder	Triaxial	Silver	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	1000
LEMO PSA.0S.250.ZLL				Female Socket Receptacle		IP50					-55 °C	250 °C					Push-Pull							Bulkhead - Rear Side Nut					174 174A 178B 188A 196A 316B RG-122			1 Connector 1 Lockwasher 1 Nut	Beryllium Copper	Solder	Coaxial			Polyetheretherketone (PEEK)	50 Ohms	Gold	1000
LEMO PSA.0S.302.CLLK52	UL94 V-0	302	2	Female Sockets Male Pins Receptacle	Backshell	IP50	Chrome	Metal	Brass Bronze	Shielded	-55 °C	250 °C	10 A	Brass Chrome	Free Hanging (In-Line) Panel Mount	Brass	Push-Pull	Gold	Keyed	Silver			Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut																				0.165 in 0.205 in	4.2 mm	5.2 mm
