EC76 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HSI NARROW

Part	Operating Temperature [Min]	Operating Temperature [Max]	Label Type	Material	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Label Size [y]	Color	For Use With/Related Products	Legend	Size [x]	Size [y]	Size [x]	Size [y]	Type	Label Size [Min]	Label Size [Max]
TE Connectivity AMP Connectors EC7682-000	-55 C	135 °C	Heat Shrinkable	Polyolefin (PO) Flame Retardant Irradiated	1.5 in 38 mm	1.4 mm 16 mm	0.06 in 0.63 in	0.09 " 2.4 mm	White	T200 T2212 T312M T312Mi T3212 T3224 TE3112 TE3124 Thermal Transfer Printers

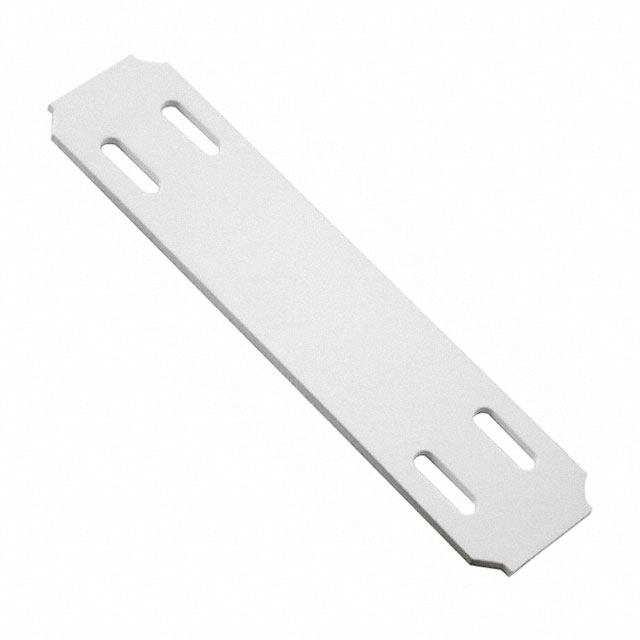

TE Connectivity AMP Connectors EC7629-000	-40 C	105 ░C		Polyolefin (PO) Irradiated Halogen Free					White		Blank	0.41 in	45 mm	10.4 mm	1.77 in	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7610-000	-55 C	135 °C		Polyolefin (PO) Irradiated					White		Blank	3.54 in	25.3 mm	90 mm	1 "	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7609-000	-55 C	135 °C		Polyolefin (PO) Irradiated					White		Blank	1 in	69.9 mm	25.4 mm	2.75 "	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7638-000	-40 C	105 ░C		Polyolefin (PO) Irradiated Halogen Free					Yellow		Blank	3.54 in	10.4 mm	90 mm	0.41 "	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7633-000	-40 C	105 ░C		Polyolefin (PO) Irradiated Halogen Free					White		Blank	3.54 in	10.4 mm	90 mm	0.41 "	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7642-000	-40 C	105 ░C		Polyolefin (PO) Irradiated Halogen Free					White		Blank	3.54 in	15 mm	90 mm	0.59 in	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7683-000	-55 C	135 °C	Heat Shrinkable	Polyolefin (PO) Flame Retardant Irradiated	0.09 in 2.4 mm			1.97 in 50 mm	White	T200 T2212 T312M T312Mi T3212 T3224 TE3112 TE3124 Thermal Transfer Printers							0.06 " 1.4 mm	0.63 in 16 mm
TE Connectivity AMP Connectors EC7604-000	-55 C	135 °C		Polyolefin (PO) Irradiated					White		Blank	1 in	70 mm	25.3 mm	2.76 "	Cable Tie Wire Marker
TE Connectivity AMP Connectors EC7692-000	-55 C	135 °C	Heat Shrinkable	Polyolefin (PO) Flame Retardant Irradiated	0.09 in 2.4 mm			1.97 in 50 mm	Yellow	T200 T2212 T312M T312Mi T3212 T3224 TE3112 TE3124 Thermal Transfer Printers							0.06 " 1.4 mm	0.63 in 16 mm
