19432100 Series
Manufacturer: HARTING
Beta
⌘K
HAN-ECO 10B SURFACE MOUNT HOUSIN
| Part | Thread Size | Size | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Ingress Protection | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Housing Material | Lock Location | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

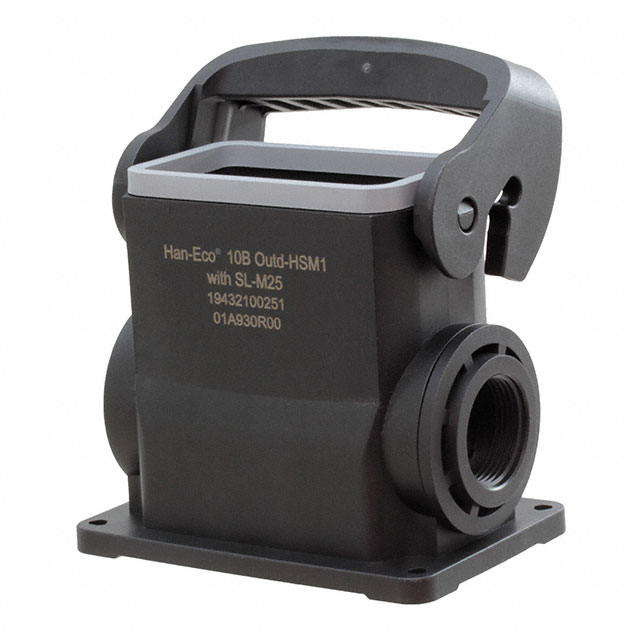

 HARTING | M25 | 10B | Base - Box Mount | 2.559 " | 3.465 " | 97 mm | 3.819 in | 65 mm | 88 mm | IP66 - Dust Tight Water Resistant | Side Entry | 125 °C | -40 C | Black | Glass Filled Nylon Polyamide (PA) | Locking Clip (1) on Base Bottom | |

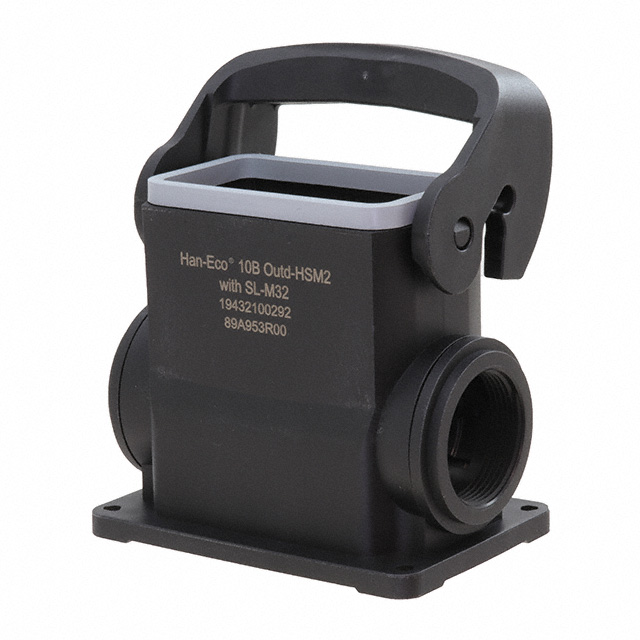

 HARTING | M32 | 10B | Base - Box Mount | 2.559 " | 3.465 " | 97 mm | 3.819 in | 65 mm | 88 mm | IP66 - Dust Tight Water Resistant | Side Entry | 125 °C | -40 C | Black | Glass Filled Nylon Polyamide (PA) | Locking Clip (1) on Base Bottom | Feed Through |

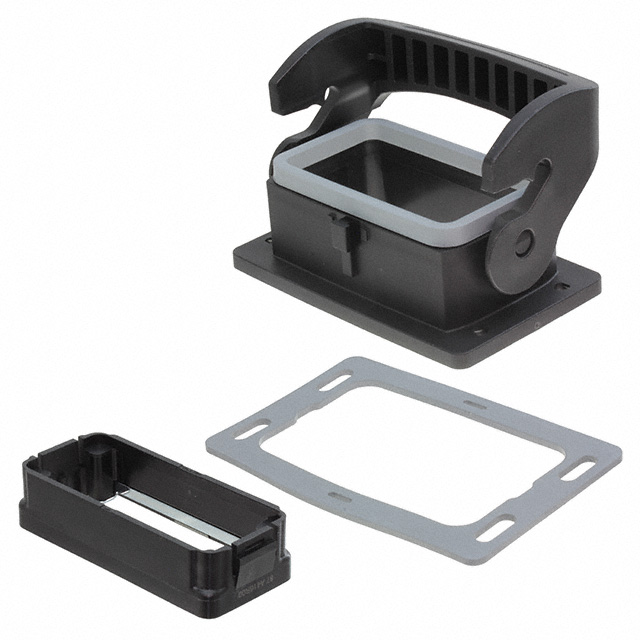

 HARTING | 10B | Base - Panel Mount | 2.362 in | 1.421 in | 94 mm | 3.701 in | 60 mm | 36.1 mm | IP66 - Dust Tight Water Resistant | Bottom Entry | 125 °C | -40 C | Black | Glass Filled Nylon Polyamide (PA) | Locking Clip (1) on Base Bottom | Cover | |

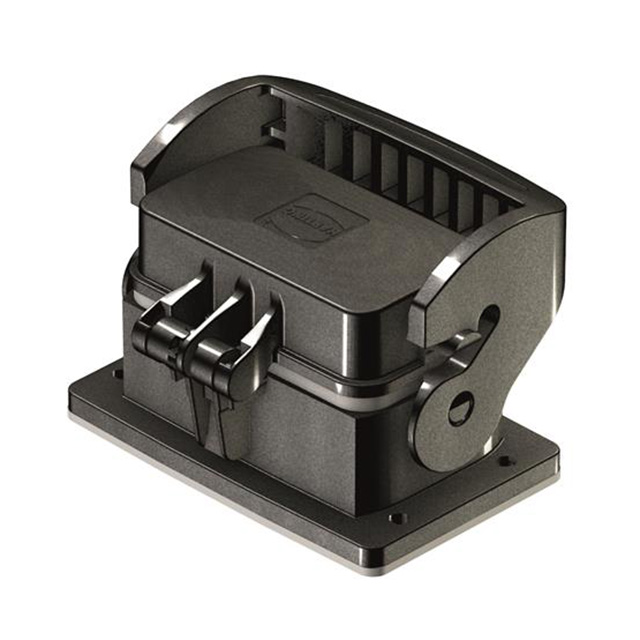

 HARTING | 10B | Base - Panel Mount | 2.362 in | 1.421 in | 94 mm | 3.701 in | 60 mm | 36.1 mm | IP66 - Dust Tight Water Resistant | Bottom Entry | 125 °C | -40 C | Black | Glass Filled Nylon Polyamide (PA) | Locking Clip (1) on Base Bottom |
