MAX22246 Series

Catalog

EV KIT FOR REINFORCED, FAST, LOW

Part	Supplied Contents	Utilized IC / Part	Type	Function	Pulse Width Distortion (Max) [Max]	Grade	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Mounting Type	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case [custom]	Qualification	Propagation Delay tpLH / tpHL (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Inputs - Side 1/Side 2	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels [custom]	Data Rate	Technology	Channel Type

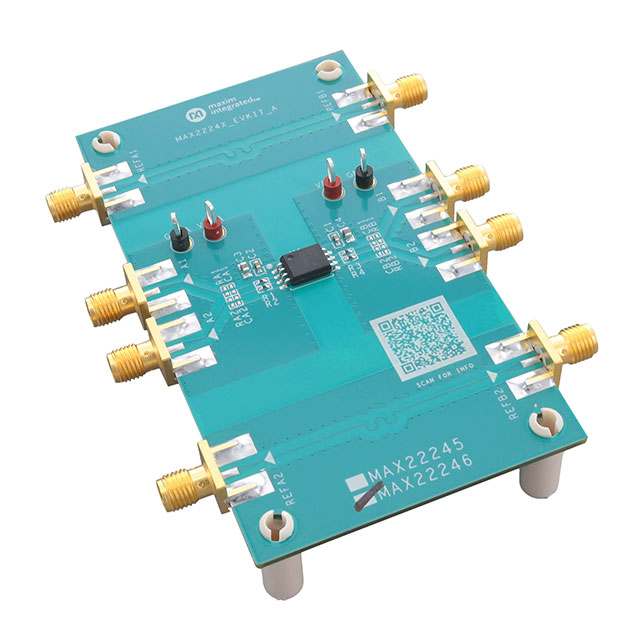

Analog Devices Inc./Maxim Integrated MAX22246CWEVKIT#	Board(s)	MAX22246	Interface	Digital Isolator
Analog Devices Inc./Maxim Integrated MAX22246CAWA/V+T			CAN RS232 RS422 RS485		2 ns	Automotive	1 ns	0.8 ns	Surface Mount	8-SOIC	8-SOIC	0.295 in	7.5 mm	AEC-Q100	9.5 ns 9.9 ns	125 °C	-40 °C	1/1	5.5 V	1.71 V	2	200 Mbps	Capacitive Coupling	Unidirectional
Analog Devices Inc./Maxim Integrated MAX22246CAWA/V+			CAN RS232 RS422 RS485		2 ns	Automotive	1 ns	0.8 ns	Surface Mount	8-SOIC	8-SOIC	0.295 in	7.5 mm	AEC-Q100	9.5 ns 9.9 ns	125 °C	-40 °C	1/1	5.5 V	1.71 V	2	200 Mbps	Capacitive Coupling	Unidirectional
Analog Devices Inc./Maxim Integrated MAX22246FAWA+			CAN RS232 RS422 RS485		2 ns	Automotive	1 ns	0.8 ns	Surface Mount	8-SOIC	8-SOIC	0.295 in	7.5 mm	AEC-Q100	9.5 ns 9.9 ns	125 °C	-40 °C	1/1	5.5 V	1.71 V	2	200 Mbps	Capacitive Coupling	Unidirectional
Analog Devices Inc./Maxim Integrated MAX22246CAWA+			CAN RS232 RS422 RS485		2 ns		1 ns	0.8 ns	Surface Mount	8-SOIC	8-SOIC	0.295 in	7.5 mm		9.5 ns 9.9 ns	125 °C	-40 °C	1/1	5.5 V	1.71 V	2	200 Mbps	Capacitive Coupling	Unidirectional
