R18030 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

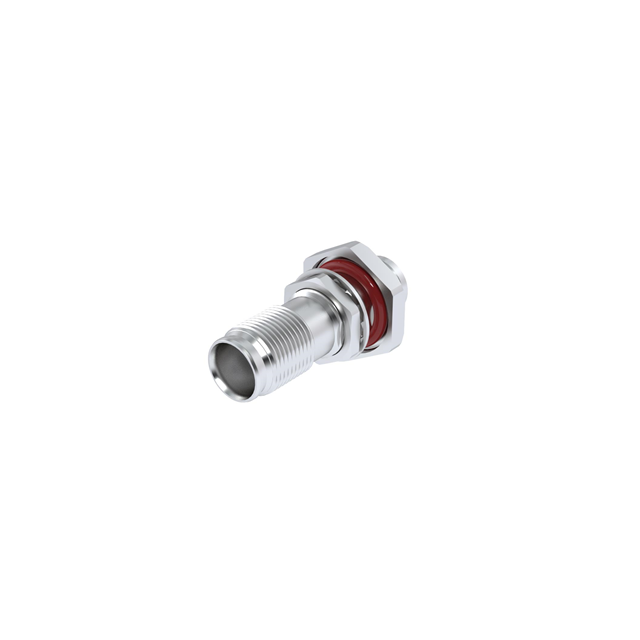

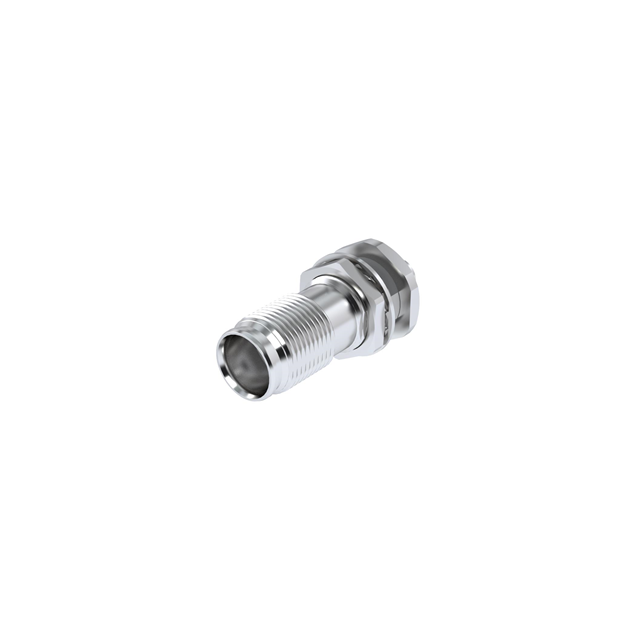

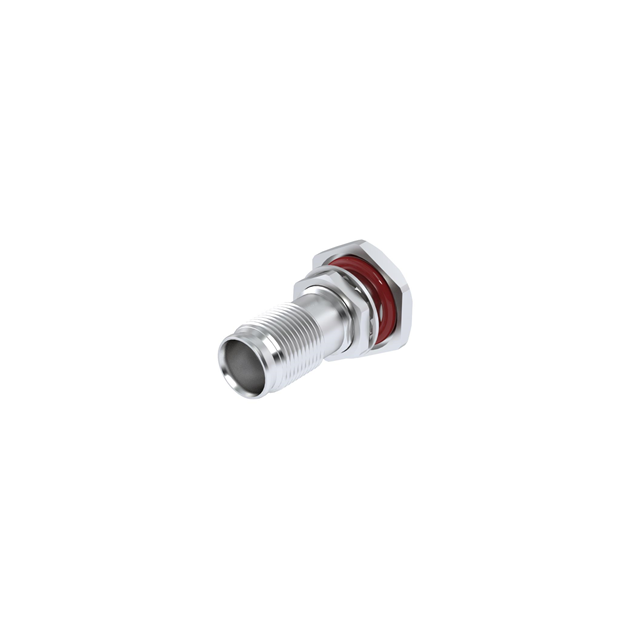

NEX10 / BULKHEAD JACK PANEL SEAL
| Part | Center Contact Plating | Voltage Rating | Body Material | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Impedance | Frequency - Max [Max] | Mounting Type | Fastening Type | Housing Color | Shield Termination | Mounting Feature | Connector Type | Ingress Protection | Cable Group | Number of Ports | Center Contact Material | Connector Style | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Silver | 500 V | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Silver | Solder | Bulkhead - Front Side Nut | Female Socket Jack | IP68 - Dust Tight Waterproof | HCF 1/4" | 1 | Beryllium Copper | NEX10 | |
 Radiall USA, Inc. | Silver | 500 V | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Solder | Bulkhead - Front Side Nut | Female Socket Jack | RG-405 (.085" Semi Rigid) | 1 | Beryllium Copper | NEX10 | 1 Connector 1 Lockwasher 1 Nut | |||
 Radiall USA, Inc. | Silver | 500 V | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Solder | Bulkhead - Front Side Nut | Female Socket Jack | 1 | Beryllium Copper | NEX10 | 1 Connector 1 Lockwasher 1 Nut | ||||
Radiall USA, Inc. | Silver | 500 V | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Silver | Solder | Bulkhead - Front Side Nut | Female Socket Jack | IP68 - Dust Tight Waterproof | RG-405 (.085" Semi Rigid) | 1 | Beryllium Copper | NEX10 | |
Radiall USA, Inc. | Silver | 500 V | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Silver | Solder | Bulkhead - Front Side Nut | Female Socket Jack | IP68 - Dust Tight Waterproof | 1 | Beryllium Copper | NEX10 | ||
 Radiall USA, Inc. | Silver | 500 V | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 Ohms | 20 GHz | Panel Mount | Threaded | Solder | Bulkhead - Front Side Nut | Female Socket Jack | 1 | Beryllium Copper | NEX10 | 1 Connector 1 Lockwasher 1 Nut |
