CT1102P11 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Outline [x]	Outline [y]	Operating Force	Switch Function	Circuit	Illumination	Termination Style	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Type	Mounting Type	Actuator Orientation

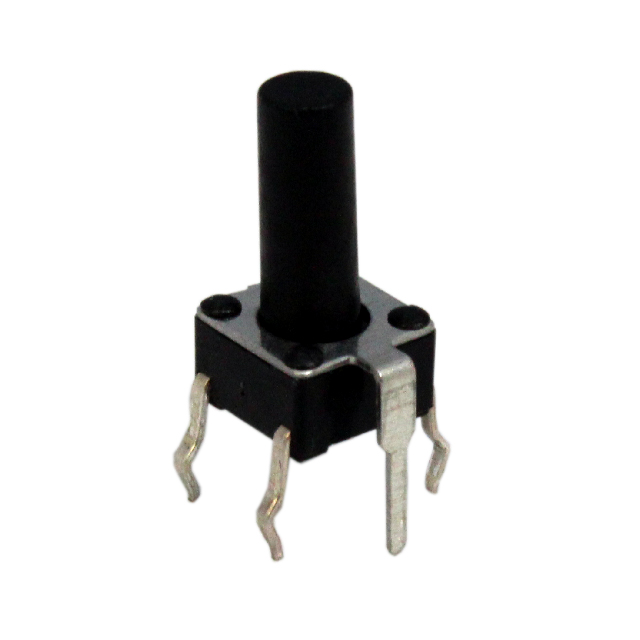

CIT Relay and Switch CT1102P11.5F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	100 gf	Off-Mom	SPST-NO	Non-Illuminated	PC Pin	11.5 mm	85 °C	-40 C	0.05 A 50 VDC	Plunger for Cap	Through Hole	Top Actuated

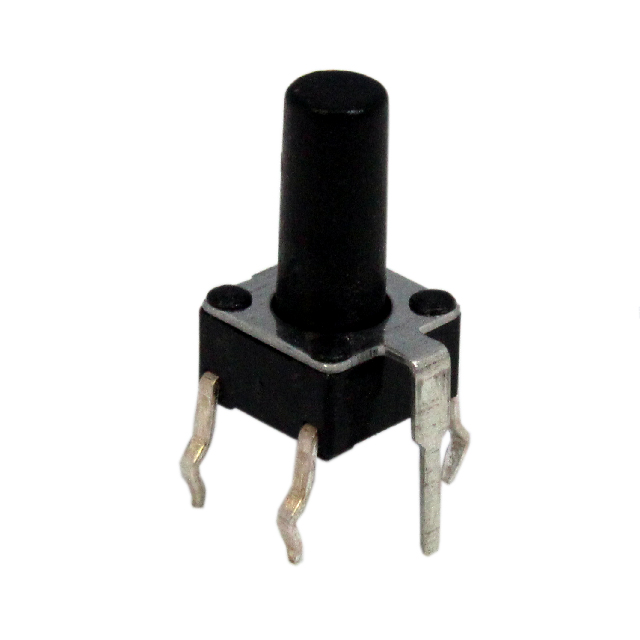

CIT Relay and Switch CT1102P11.0F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	260 gf	Off-Mom	SPST-NO	Non-Illuminated	PC Pin	11 mm	85 °C	-40 C	0.05 A 50 VDC	Plunger for Cap	Through Hole	Top Actuated
CIT Relay and Switch CT1102P11.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	160 gf	Off-Mom	SPST-NO	Non-Illuminated	PC Pin	11 mm	85 °C	-40 C	0.05 A 50 VDC	Plunger for Cap	Through Hole	Top Actuated
CIT Relay and Switch CT1102P11.5F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	160 gf	Off-Mom	SPST-NO	Non-Illuminated	PC Pin	11.5 mm	85 °C	-40 C	0.05 A 50 VDC	Plunger for Cap	Through Hole	Top Actuated
CIT Relay and Switch CT1102P11.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	100 gf	Off-Mom	SPST-NO	Non-Illuminated	PC Pin	11 mm	85 °C	-40 C	0.05 A 50 VDC	Plunger for Cap	Through Hole	Top Actuated
