TL53 Series

Manufacturer: E-Switch

Catalog

MICROSWITCH TACT; NO + NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.57N

Part	Mechanical Life	Switch Travel	Actuator Material	Outline [y]	Outline [x]	Switch Function	Actuator Orientation	Circuit	Actuator Length, Right Angle	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Mounting Type	Contact Rating @ Voltage	Actuator Type	Illumination	Termination Style	Actuator Length, Right Angle [x]

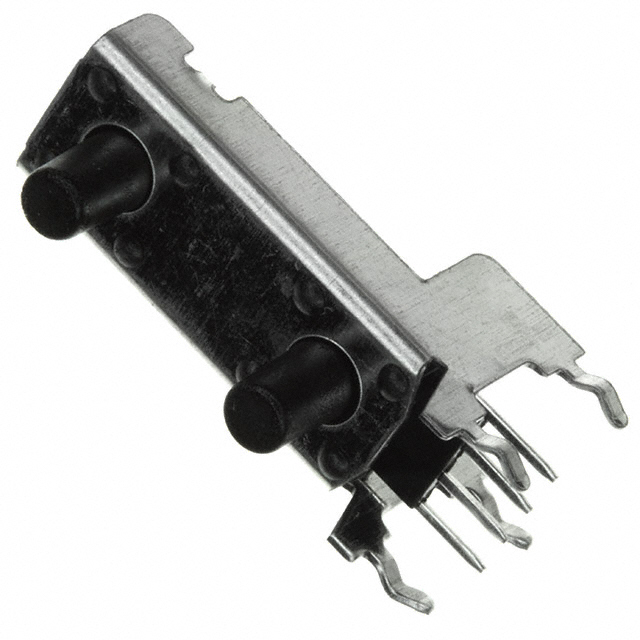

E-Switch TL53EF160Q	100000 Cycles	0.25 mm	Acetal	10.5 mm	8.4 mm	Off-Mom	Side Actuated	SPST x 2	7.35 mm	-20 ░C	70 °C	160 gf	Right Angle Through Hole	0.05 A 12 VDC	Dual	Non-Illuminated	PC Pin
E-Switch TL53F100Q	100000 Cycles	0.25 mm	Acetal	10.5 mm	8.4 mm	Off-Mom	Side Actuated	SPST x 2		-20 ░C	70 °C	100 gf	Right Angle Through Hole	0.05 A 12 VDC	Dual	Non-Illuminated	PC Pin	3.15 mm

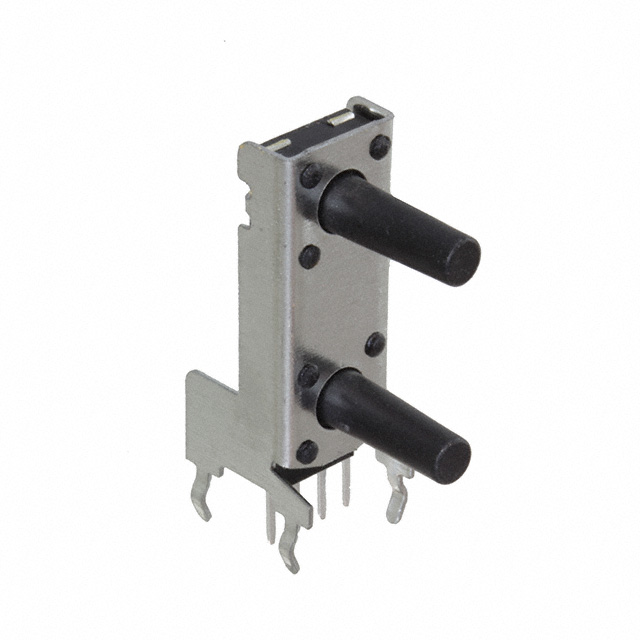

E-Switch TL53HF160Q	100000 Cycles	0.25 mm	Acetal	10.5 mm	8.4 mm	Off-Mom	Side Actuated	SPST x 2		-20 ░C	70 °C	160 gf	Right Angle Through Hole	0.05 A 12 VDC	Dual	Non-Illuminated	PC Pin	11.85 mm
