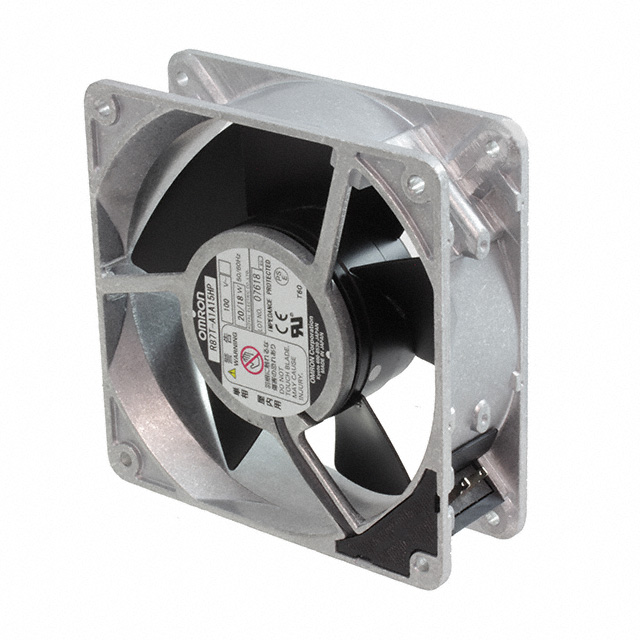

R87T Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
FAN AXIAL 120X38MM 100VAC TERM
| Part | Fan Type | RPM | Noise | Material - Blade | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Current Rating (Amps) | Material - Frame | Termination | Width [y] | Weight | Weight | Voltage - Rated | Bearing Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Static Pressure | Static Pressure | Voltage Range [Min] | Voltage Range [Max] | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Tubeaxial | 2750 RPM | 40 dB(A) | Zinc | 120 mm | 120 mm | CSA UL | 0.19 A | Aluminum | 2 Terminals | 38 mm | 589.7 g | 1.3 lbs | 100 VAC | Ball | 14 Watts | -20 °C | 70 °C | -20 C | 70 °C | 2 m³/min | 71.5 CFM | |||||||
 Omron Electronics Inc-EMC Div | Tubeaxial | 3100 RPM | 46 dB(A) | Zinc | 120 mm | 120 mm | CSA UL | 0.19 A | Aluminum | 2 Terminals | 38 mm | 589.7 g | 1.3 lbs | 115 VAC | Ball | 18 W | -20 °C | 70 °C | -20 C | 70 °C | 3 m³/min | 107.1 CFM | 58.8 Pa | 0.236 in H2O | |||||
 Omron Electronics Inc-EMC Div | Tubeaxial | 3250 RPM | 56 dB | Zinc | CSA UL | 0.42 A | Aluminum | 2 Wire Leads | 55 mm | 1.2 kg | 2.6 lbs | 100 VAC | Ball | 40 W | -20 °C | 70 °C | -20 C | 70 °C | 5.8 m³/min | 207 CFM | 88 Pa | 0.353 in H2O | 85 VAC | 110 VAC | 150 mm | Round | |||
 Omron Electronics Inc-EMC Div | Tubeaxial | 3100 RPM | 46 dB(A) | Zinc | 120 mm | 120 mm | CSA UL | 0.21 A | Aluminum | 2 Terminals | 38 mm | 589.7 g | 1.3 lbs | 100 VAC | Ball | 18 W | -20 °C | 70 °C | -20 C | 70 °C | 3 m³/min | 107.1 CFM | 58.8 Pa | 0.236 in H2O | |||||
 Omron Electronics Inc-EMC Div | Tubeaxial | 2900 RPM | 46 dB(A) | Zinc | 119.5 mm | CSA UL | 0.28 A | Aluminum | 2 Wire Leads | 38 mm | 635 g | 1.4 lbs | 100 VAC | Ball | 20 W | -20 °C | 70 °C | -20 C | 70 °C | 3.2 m³/min | 114.3 CFM | 85 VAC | 110 VAC | 119.5 mm | |||||
Omron Electronics Inc-EMC Div | Tubeaxial | 59 dB(A) | CSA UL | 0.19 A | 55 mm | 230 VAC | Ball | 34 W | 5.8 m³/min | 207 CFM | 127.5 Pa | 0.512 in H2O | 150 mm | Round | |||||||||||||||
Omron Electronics Inc-EMC Div | Tubeaxial | 59 dB(A) | CSA UL | 400 mA | 55 mm | 115 VAC | Ball | 34 W | 5.8 m³/min | 207 CFM | 150 mm | Round | |||||||||||||||||
Omron Electronics Inc-EMC Div | Tubeaxial | 2900 RPM | 46 dB(A) | Zinc | 119.5 mm | CSA UL | 0.24 A | Aluminum | 2 Wire Leads | 38 mm | 635 g | 1.4 lbs | 115 VAC | Ball | 20 W | -20 °C | 70 °C | -20 C | 70 °C | 3.2 m³/min | 114.3 CFM | 97.8 VAC | 126.5 VAC | 119.5 mm |
