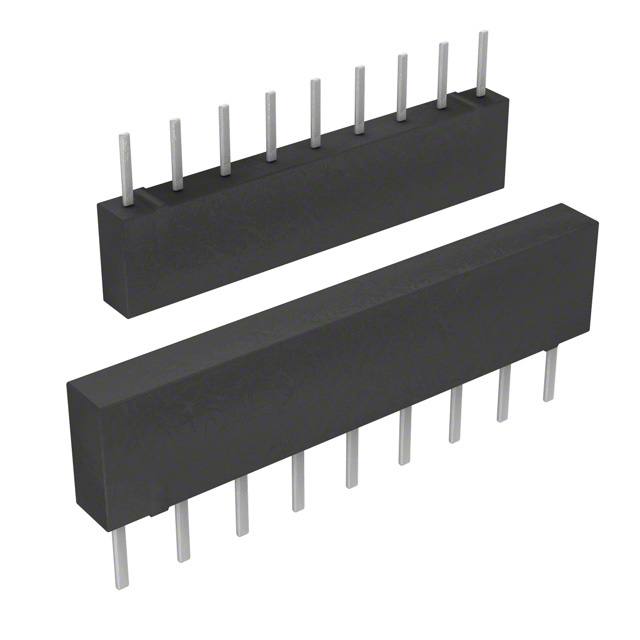

4309R Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 8 RES 27K OHM 9SIP
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Pins | Mounting Type | Circuit Type | Package / Case | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power Per Element | Temperature Coefficient | Number of Resistors | Resistor-Ratio-Drift | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) [custom] | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 27 kOhms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 100 Ohms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 3.9 kOhms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 2 kOhms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 6.8k | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 220 Ohms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 2.7 k | ||
 Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 80k | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 100 ppm/°C | 8 | 50 ppm/°C | 2 % | -55 C | 125 °C | 20 kOhms | ||
Bourns Inc. | 0.884 in | 2.16 mm | 22.45 mm | 0.085 in | 9 | Through Hole | Bussed | 9-SIP | 9-SIP | 4.95 mm | 0.195 in | 200 mW | 250 ppm/°C | 8 | 50 ppm/°C | 5 % | -55 C | 125 °C | 10 M |
